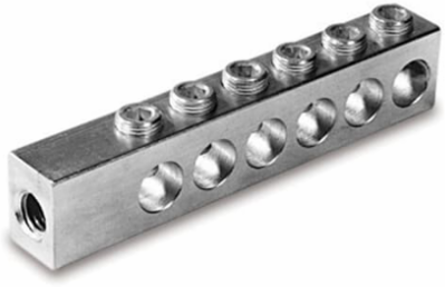

Homac ABS 2350 SCREWON TRANS CONN 12-350 5/8 2OUT
Homac ABS 2350 SCREWON TRANS CONN 12-350 5/8 2OUT
- MPN: ABS 2350
- UPC: 783786687114
- PPN: T-B-ABS 2350
- UNSPSC: 39121443
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$24.27/ EA
Description
Aluminum Screw-On Transformer Connectors - ABS In-line, single-line bar, cable range 12-350, length 3-1/4 inch, boot no-Refer to TNB Rep, stud size 5/8, outlets 2
Specifications
Additional Information
- Application
- Stud Mount Transformer Connector
- Connection Type
- Mechanical
- Insulation Material
- None
- Number of Conductors
- 2
- Product Type
- Screw-On Transformer Connector
- Special Functions
- High Strength Aluminum Alloy maintains constant bolting pressure on conductors. Dual-rated to accept Aluminum and Copper Conductors. Disconnectability for easy removal from transformer secondary threaded studs. Ball-bottom Screws ensure maximum conductor contact pressure and break up interstrand oxides.
Brand / LabelHomac
Effective Date20080619
MaterialAluminum
Product NameELECTRICAL CONNECTOR <1000V
Size3-1/4 inch
StandardsANSI C119.4
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4663 >> Electrical underground bus connector
