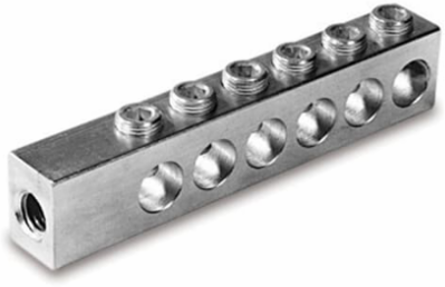

Homac ABS 4350 C SB 17BLK SCREWON TRANS CONN 12-350 5/8 4COND
- MPN: ABS 4350 C SB 17BLK
- UPC: 783786687220
- PPN: T-B-ABS 4350 C SB 17BLK
- UNSPSC: 39121443
CAD
$118.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Aluminum Transformer Connector, #12 - 350 kcmil, Aluminum and Copper, Stud 5/8 inch, Four Conductor, with Black boot cover, Length 5-1/4 inch
Specifications
Additional Information
| Application | Stud Mount Transformer Connector |
|---|---|
| Connection Type | Mechanical |
| Insulation Material | Insulating Boot |
| Number of Conductors | 4 |
| Product Type | Screw-On Transformer Connector |
| Special Functions | High Strength Aluminum Alloy maintains constant bolting pressure on conductors. Dual-rated to accept Aluminum and Copper Conductors. Disconnectability for easy removal from transformer secondary threaded studs. Ball-bottom Screws ensure maximum conductor contact pressure and break up interstrand oxides. |
| Brand / Label | Homac |
|---|---|
| Effective Date | 20080619 |
| Material | Aluminum |
| Product Name | ELECTRICAL CONNECTOR <1000V |
| Size | 5-1/4 inch |
| Standards | ANSI C119.4 |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4663 >> Electrical underground bus connector |
|---|
