Weidmuller 1970930000 SCZ 3.81/04/180F SN OR BX
- MPN: 1970930000
- PPN: WDM-1970930000
CAD
$4.50
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
PCB plug-in connector, male plug, 3.81 mm, Number of poles: 4, 180°, Clamping yoke connection, Clamping range, max. : 1.5 mm², Box
Documentation & Downloads
Specifications
Rated Data Acc. To Ul 1059
- Institute (cURus)
- cURus
- Rated voltage (Use group B / UL 1059)
- 300 V
- Rated current (Use group B / UL 1059)
- 10 A
- Wire cross-section, AWG, min.
- AWG 28
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (cURus)E60693
Rated voltage (Use group D / UL 1059)300 V
Rated current (Use group D / UL 1059)10 A
Wire cross-section, AWG, max.AWG 16
Approvals
- Approvals
- CSA, cURus, EAC
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Height
- 11.1 mm
- Depth
- 18.4 mm
- Net weight
- 4.38 g
Height (inches)0.437 inch
Depth (inches)0.724 inch
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984

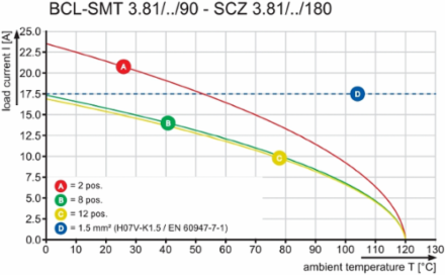

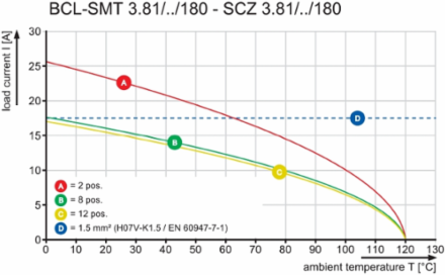

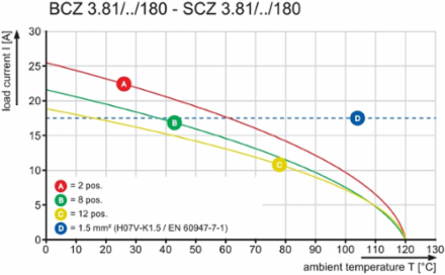

- Rated current, max. number of poles (Tu=20°C)
- 17.1 A
- Rated current, max. number of poles (Tu=40°C)
- 15.2 A
- Rated voltage for surge voltage class / pollution degree III/2
- 160 V
- Rated impulse voltage for surge voltage class/ pollution degree II/2
- 2.5 kV
- Rated impulse voltage for surge voltage class/ contamination degree III/3
- 2.5 kV
Rated current, min. number of poles (Tu=20°C)17.5 A
Rated current, min. number of poles (Tu=40°C)17.5 A
Rated voltage for surge voltage class / pollution degree II/2320 V
Rated voltage for surge voltage class / pollution degree III/3160 V
Rated impulse voltage for surge voltage class/ pollution degree III/22.5 kV
Short-time withstand current resistance3 x 1s with 76 A
Material Data
- Insulating material
- PA 66 GF 30
- Colour chart (similar)
- RAL 2000
- Comparative Tracking Index (CTI)
- ≥ 550
- UL 94 flammability rating
- V-0
- Contact material
- Copper alloy
- Layer structure of plug contact
- 4-8 µm Sn
- Storage temperature, max.
- 55 °C
- Operating temperature, min.
- -50 °C
- Temperature range, installation, min.
- -25 °C
Colourorange
Insulating material groupII
Insulation strength≥ 108 Ω
GWFI960 °C
Contact surfacetinned
Storage temperature, min.-25 °C
Max. relative humidity during storage80 %
Operating temperature, max.120 °C
Temperature range, installation, max.120 °C
Classifications
- ETIM 6.0
- EC002638
- eClass 9.0
- 27-44-03-09
- eClass 10.0
- 27-44-03-09
ETIM 7.0EC002638
eClass 9.127-44-03-09
UNSPSC30-21-18-01
System Parameters
- Product family
- OMNIMATE Signal - series BC/SC 3.81
- Wire connection method
- Clamping yoke connection
- Pitch in inches (P)
- 0.15 inch
- Number of poles
- 4
- L1 in inches
- 0.45 inch
- Pin series quantity
- 1
- Touch-safe protection acc. to DIN VDE 57 106
- Safe from finger touch
- Volume resistance
- 6.00 mΩ
- Stripping length
- 7 mm
- Tightening torque for screw flange, max.
- 0.3 Nm
- Tightening torque, max.
- 0.25 Nm
- Screwdriver blade
- 0.4 x 2.5
- Plugging cycles
- 25
- Pulling force/pole, max.
- 5 N
Type of connectionField connection
Pitch in mm (P)3.81 mm
Conductor outlet direction180°
L1 in mm11.43 mm
Number of rows1
Rated cross-section1 mm²
Touch-safe protection acc. to DIN VDE 0470IP 20
Can be codedYes
Tightening torque for screw flange, min.0.2 Nm
Tightening torque, min.0.2 Nm
Clamping screwM 2
Screwdriver blade standardDIN 5264-A
Plugging force/pole, max.8 N
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Packing
- Packaging
- Box
- VPE width
- 115 mm
VPE length20 mm
VPE height140 mm
Notes
- Notes
- Additional colours on request Rated current related to rated cross-section & min. No. of poles. Wire end ferrule with plastic collar to DIN 46228/4 P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
IPC conformityConformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Conductors Suitable For Connection
- Clamping range, min.
- 0.08 mm²
- Wire connection cross section AWG, min.
- AWG 28
- Solid, min. H05(07) V-U
- 0.2 mm²
- Flexible, min. H05(07) V-K
- 0.2 mm²
- w. plastic collar ferrule, DIN 46228 pt 4, min.
- 0.2 mm²
- w. wire end ferrule, DIN 46228 pt 1, min.
- 0.2 mm²
- Plug gauge in accordance with EN 60999 a x b; ø
- 2.4 mm x 1.5 mm ; 2.4 mm
- Max. clamping range
- 1.5 mm²
Clamping range, max.1.5 mm²
Wire connection cross section AWG, max.AWG 16
Solid, max. H05(07) V-U1.5 mm²
Flexible, max. H05(07) V-K1.5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.1.5 mm²
w. wire end ferrule, DIN 46228 pt 1, max.1.5 mm²
Reference textThe outside diameter of the plastic collar should not be larger than the pitch (P).
Rated Data Acc. To Csa
- Institute (CSA)
- CSA
- Rated voltage (Use group B / CSA)
- 300 V
- Rated current (Use group B / CSA)
- 11 A
- Wire cross-section, AWG, min.
- AWG 28
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (CSA)200039-1121690
Rated voltage (Use group C / CSA)50 V
Rated current (Use group C / CSA)11 A
Wire cross-section, AWG, max.AWG 16
