Milwaukee Tool 48-20-5430 3-9/16 Inch x 22 Inch Carbide Tipped SDS Max Core Bit, 3 Inch Drilling Depth
Milwaukee Tool 48-20-5430 3-9/16 Inch x 22 Inch Carbide Tipped SDS Max Core Bit, 3 Inch Drilling Depth
- MPN: 48-20-5430
- UPC: 045242315598
- PPN: MIL-48-20-5430
- UNSPSC: 20121607
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$322.95/ EA
Description
Milwaukee’s 1-piece Carbide tipped core bits are ideal for drilling large holes where the depth is relatively shallow. The core bit cuts a Kerf only. The inside core must be removed by the operator before deeper drilling can be accomplished. Use of centering bit 48-20-5495 is recommended (not included). Use drift key 48-20-5497 to remove centering bit from the 1-piece core bit. The 1-piece core bits are available in SDS-Max or spline shanks. They come in a variety of diameters ranging from 1-1/2 in. to 6 in. with overall lengths of 11-3/8 in. or 22 in. and a drilling depth of 3 in. The asymmetric tooth pitch with alternating tooth geometries creates faster material pulverization. The 1-piece design maximizes energy transfer and the thick wall core body is durable even in large hammers. The fluted core exterior minimizes friction loss and removes debris faster.
Features

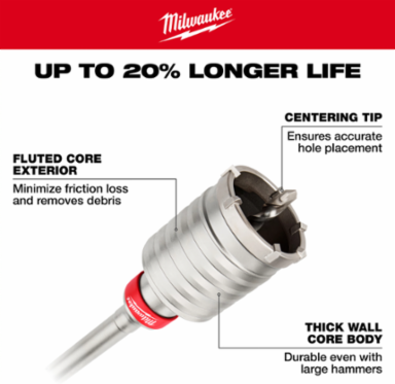

- Asymmetrical and alternating teeth for faster material pulverization
- Thick-wall core body for durability even in large hammers
- Centering tip to reduce bit walking and create exact spot drilling
- Remove centering bit with drift key 48-20-5497 (not included)
Specifications
Specifications
- Country of Origin
- Germany
- Length
- 22.0 Inches
- Chuck Fitment
- SDS-Max
- Bit Type
- Core
- Recommended Safety Equipment
- Safety Glasses
Bit Diameter3..5625
Bit MaterialCarbide Tipped
Package Contents(1) SDS-Max 1 pc. Core 3-9/16" x 22"
Drilling Depth3.0 in
