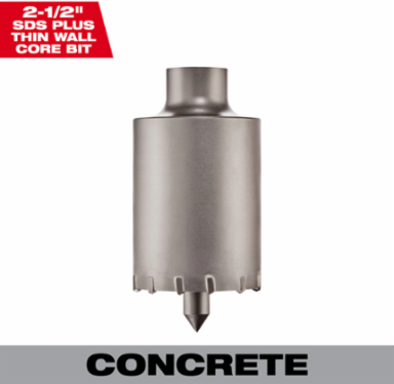

Milwaukee Tool 48-20-5040 SDS Plus 2-1/2 Inch Carbide Tipped Core Bit, Usable Depth 3 Inch
Milwaukee Tool 48-20-5040 SDS Plus 2-1/2 Inch Carbide Tipped Core Bit, Usable Depth 3 Inch
- MPN: 48-20-5040
- UPC: 045242105359
- PPN: MIL-48-20-5040
- UNSPSC: 20121607
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$100.57/ EA
Description
Milwaukee's Carbide tipped core bits are ideal for drilling large holes where the depth is relatively shallow. The core bit cuts a Kerf only. The usable depth of thin wall core bits ranges from 2-13/16 in. to 3-3/16 in. The thin wall construction is ideal for smaller hammers and newer concrete. The inside core must be removed by the operator before deeper drilling can be accomplished. Multiple extensions and adapters are available to allow for deeper holes to be drilled. The appropriate drive shank must be used to drive the core bit. Use of center pin and guide plate is recommended for positioning and starting a 1-1/4 in. hole and larger. Use of center pin and guide plate is not recommended for positioning and starting a 1-1/8 in. hole or smaller. Milwaukee Carbide tipped core bits are available from 1 in. to 6 in. diff. Includes core bit centering pin and guide plate.
Features
- 2-1/2" Diameter
- Includes Core Body with Guide Plate & Centering Pin
- Thin Wall Design
- Usable Cuting Depth 2-13/16"
- Use With 7-1/2" Extension 48-95-6075
- Use with 8" or 12" SDS Plus Adapter Shanks (48-03-3555, 48-03-3561)
- Use With Guide Plate 48-20-6158 and Centering Pin 48-20-6155
Specifications
Specifications
- Bit Type
- Hole Saw
- Drilling Depth
- 3 in
- Shank Diameter
- 3/4 in
Depth3.5 Inches
MaterialSolid Carbide
Country of OriginJapan
