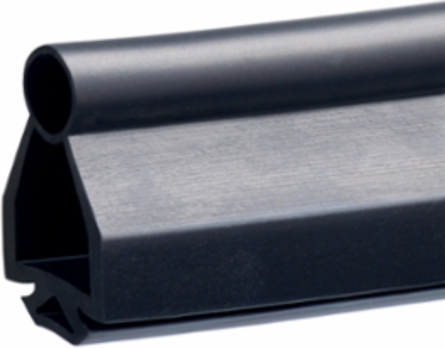

Schmersal 101172155 SE-P40 Safety Edge, 1.25 Meter Length, 25 mm Width, IP67 Rating
- MPN: 101172155
- PPN: SCM-101172155
CAD
$85.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SE-P40 Safety Edge, 1.25 Meter Length, 25 mm Width, IP67 Rating
Features
- Dirt and moisture in the profile are to a great extent compensated
- Insensitive to environmental conditions
- approx. 40 mm high including aluminum profile
Documentation & Downloads
Specifications
Key Specifications
| Length | 1,250 mm |
|---|
| Width | 25 mm |
|---|
Note
| Note (General) | If a higher resistance is required, choose safety edge profiles with 20 µm plastic coating. The coating must be submitted to low mechanical loads only. |
|---|

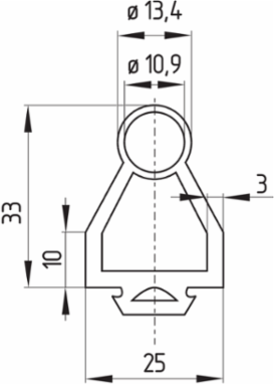

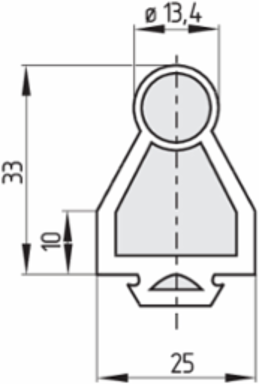

Mechanical data - Dimensions
| Width | 25 mm |
|---|---|
| Width, maximum | 10,000 mm |
| Width, minimum | 400 mm |
|---|---|
| Height, approx. | 38 mm |
General data
| Standards | EN ISO 13850 |
|---|---|
| Material resistance (acids) | Good |
| Note (Material of the rubber profile) | International abbreviation: EPDM, 65 Shore A | Chemical name : Ethylene-propylene terpolymer |
| Resistance against permanent deformation | Good |
|---|---|
| Material of the rubber profile | EPDM, 65 Shore A |
| Gross weight | 435 g |
Notes - Chemical resistance
| Material resistance (fuel) | Low |
|---|---|
| Material resistance (oil) | Low |
| Material resistance, (rebound elasticity at 20 C) | Good |
| Material resistance (solvents) | low to satisfactory |
|---|---|
| Material resistance (ozone) | Excellent |
| Material resistance (weather) | Excellent |
Ambient conditions
| Degree of protection | IP67 |
|---|---|
| Material temperature resistance (short-term), maximum | +170 °C |
| Material temperature resistance (long-term), maximum | +140 °C |
| Material temperature resistance (short-term), minimum | -50 °C |
|---|---|
| Material temperature resistance (long-term), minimum | -30 °C |
Mechanical data
| Mechanical life, minimum | 20,000,000 Operations |
|---|
