Schneider Electric NSYSODS Activation system for secondary doors, PanelSeT SFN, PanelSeT SF, steel
Schneider Electric NSYSODS Activation system for secondary doors, PanelSeT SFN, PanelSeT SF, steel
- MPN: NSYSODS
- PPN: SCH-NSYSODS
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$538.12/ EA
Description

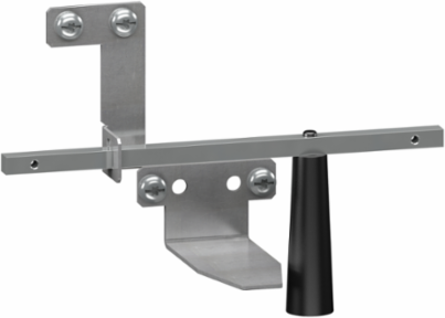

This is an activation system for secondary doors. It is designed to be installed in the main enclosure. Activated by manual operation, preventing the opening of the secondary enclosures connected to one another by runner rods. The safety function consists of a part that forces the system into the position in which the secondary enclosures are locked in order to lock the main door. The mechanism is made zinc-coated steel and the activation handle is made of black plastic. The set contains the elements for activating the main door as well as fixin elements.
Specifications
Physical Attributes
- Color
- handle Black
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 x handle, fixing elements, 1 x mechanism
- Material
- activation handle plastic, mechanism steel
- Carbon Footprint Of The Distribution Phase A4
- 0.078924297, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.090910937, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2026-04-15
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1912
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Device Application
- automobile application
- Fixing Mode
- by fixing element - on structure
- Product Availability
- Stock - Normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- No
- Surface Finish
- zinc coated
- Total Lifecycle Carbon Footprint
- 3 kg CO2 eq.
- Pep Code
- ENVPEP1109023EN
- Pep Verification Date
- 2023-03-30
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Recyclability Potential, In %
- 98
- Pn
- 1
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -, -, -
Mounting Supportinterlocking for secondary doors, interlocking for main door
Carbon Footprint Of The End Of Life Phase C1 To C41 kg CO2 eq., 0.963847518
Carbon Footprint Of The Manufacturing Phase A1 To A32 kg CO2 eq., 1.781498571
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Mounting Locationon top structure of main enclosure
Product Or Component Typeactivation for secondary door
RangePanelSeT
Software Versionv5.9.4
Sustainable PackagingNo
Warranty In Months18
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Offer Owner Code190789
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 2.915181323
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1109023EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- activation for secondary door
ETIM
- ETIM 8
- EC002626
ETIM 9EC002626
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- Brazil, Spain, France, United States
