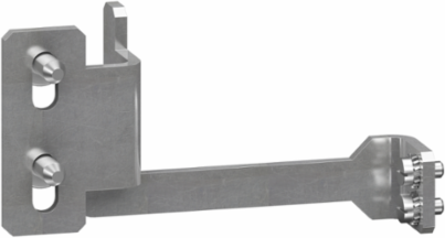

Schneider Electric NSYSLCKP Interlocking System for Main Door, Steel, Spacial Range, Set of 1
- MPN: NSYSLCKP
- PPN: SCH-NSYSLCKP
CAD
$58.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The interlocking system from Schneider Electric is thoughtfully designed for the main door applications within the Spacial range, offering robust security and reliability. Constructed from high-quality steel, this system ensures durability and strength, making it an ideal choice for industrial and commercial settings. Its innovative design allows for seamless integration into existing installations, promoting safety and operational effectiveness without compromising on ease of use. Each set includes everything necessary for installation, making it a practical solution for enhancing the security of electrical enclosures.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Spain, France, United States |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Device Composition | fixing elements, interlocking elements, switch2 x brackets for fixing the configured panel |
| Mounting Support | interlocking for secondary doors, activation for secondary doors |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.6 kg CO2 eq., 0.611220377 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 1 kg CO2 eq., 1.129730801 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Material | steel |
| Product Availability | Stock - Normally stocked in distribution facility |
| Quantity Per Set | set of 1 |
| Returnability | Yes |
| Surface Finish | zinc coated |
| Total Lifecycle Carbon Footprint | 2 kg CO2 eq. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; FR |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 7326908688 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Enclosure Nominal Dimensions | -, -, -, - |
| Carbon Footprint Of The Distribution Phase [A4] | 0.050049554, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.057650838, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-06-11 |
| Stocking Flag | N |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1912 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Device Application | automobile application |
| Fixing Mode | by fixing element - door |
| Mounting Location | on door of main enclosure |
| Product Or Component Type | interlocking for main door |
| Range | PanelSeT |
| Software Version | v5.9.4 |
| Sustainable Packaging | No |
| Pep Code | ENVPEP1109023EN |
| Pep Verification Date | 2023-03-30 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Recyclability Potential In % | 98 |
| Package Weight(Lbs) | 176.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Product Compatibility | Allen Bradley (1494 VH11) switches, Schneider Electric switches, Siemens (FH0H) switches, Square D (9422 A1) switches |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1109023EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-03-30 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 1.84865157 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1109023EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | interlocking for main door |
|---|
ETIM
| ETIM 8 | EC002626 |
|---|
| ETIM 9 | EC002626 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
