Superstrut C749N Pipe Straps, Pipe Clamps & Hangers (Series 700)
Superstrut C749N Pipe Straps, Pipe Clamps & Hangers (Series 700)
- MPN: C749N
- UPC: 616013217832
- PPN: T-B-C749N
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$117.98/ EA
Description

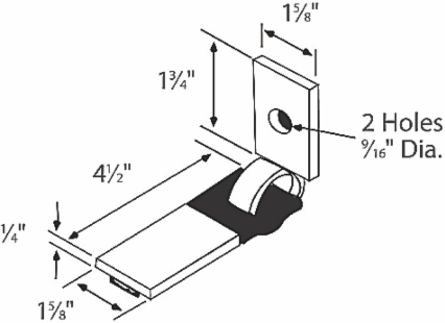

Brace, Seismic, Length 4-1/2 Inches, Height 1-3/4 Inches, Width 1-5/8 Inches, Hole Diameter 9/16 Inches, Load Safety Factor 1,500 Pounds, Steel
Features
- All braces have plasticol coating on the flat member which insulates against vibration noise transmission and eliminates rattle at the connection points
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121701 Electrical hangers
- Brand Name
- Superstrut
- Special Features
- All braces have plasticol coating on the flat member which insulates against vibration noise transmission and eliminates rattle at the connection points
- Material
- Steel
IGCC5026 Electrical hangers
TypePipe Straps, Pipe Clamps & Hangers (Series 700)

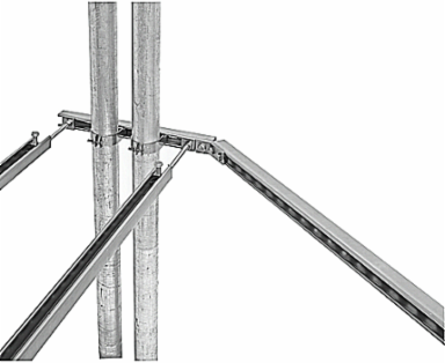

ApplicationFor use in seismic bracing applications
FinishGoldGalv
Packaging
- Outer Quantity
- 50
- Weight Uom
- 81.5 lbs. per 100
Outer Dimensions (inches)15.1x11x5.4
