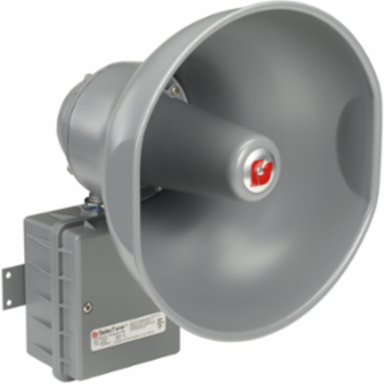

Federal Signal 314GCX-024-CN SelecTone 30W Amplified Speaker, Explosion-Proof, Supervised, UL and cUL CID1, ULC Fire Listed, 24VDC, Gray
Federal Signal 314GCX-024-CN SelecTone 30W Amplified Speaker, Explosion-Proof, Supervised, UL and cUL CID1, ULC Fire Listed, 24VDC, Gray
- MPN: 314GCX-024-CN
- UPC: 782979221432
- PPN: FDS-314GCX-024-CN
- UNSPSC: 46171602
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$4135.15/ EA
Description
Models 304GCX, 314GCX, 304GCX-CN, and 314GCX-CN SelecTone® Hazardous Location Amplified Speakers are designed to produce crisp, clear tones in supervised alarm notification systems. These amplified speakers are compatible with fire alarm, voice evacuation, suppression supervised control panels and power boosters. These amplified speakers can broadcast tones generated by a Tone Card installed into the speaker (the plug-in 32-tone UTM*) or by a central tone source in a voice evacuation or paging system. When live public address or voice messages are required, plug-in Connector Cards (AM25CK or AM70CK) interface with the audio output of the EVAC panel.The speaker cone and projector are constructed of rugged spun aluminum. The solid-state amplifier circuit is protected in a die-cast aluminum housing. Dust and moisture-proof gaskets provide protection from the elements. All external surfaces are sealed with gray powder coat paint. These speakers are easily installed with external mounting tabs.The rugged construction and high output of the Models 304GCX and 314GCX make it ideal for use in harsh environments with high ambient noise levels.
Features
- Available in 24VDC
- Four wire supervisable power circuit
- Capable of producing tones or voice messages
- Built in gain control
- Digital signal amplification
- Fused input and output
- Cast aluminum housing, spun aluminum projector
- External mounting tabs
- Indoor/outdoor use
- Type 4X, IP66 enclosure
- CSFM Approved
- UL and cUL Listed for Class I, Division 2, Groups A, B, C and D; Class II, Division 2, Groups F and G; Class III
- 304GCX/314GCX are UL Fire Listed
- 304GCX-CN/314GCX-CN are ULC Fire Listed
Specifications
Specifications
- Country of Origin
- United States
- Body Color
- Gray
- dBa 1 Meter
- 122
- Availability
- Available in 4-6 weeks
- Operating Current Amps
- 1.3
- Operating Voltage
- 24 Vdc
- Audible Signals Body Color
- Gray
- Audible Signals Watts
- 30
- Height
- 13.9 in, 35.306 cm
Weight6.1 lbs
Certification ListingULC Fire
dBa 10 Ft112
Mount TypeSurface
Operating Temp.-40˚ to +150˚F (-40˚ to +66˚C)
Watts30
Audible Signals Certification ListingULC Fire Listed
Depth13.9 in, 35.306 cm
Width10.2 in, 25.908 cm
