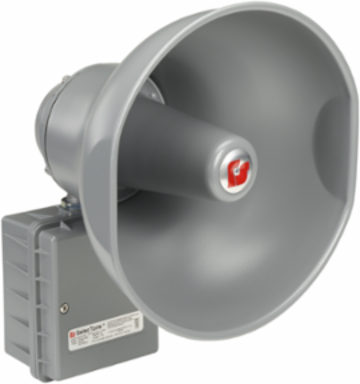

Federal Signal 314GC-024 SelecTone 30W Amplified Speaker, Hazardous Location, Supervised, UL and cUL, 24VDC, Gray
- MPN: 314GC-024
- UPC: 782979208341
- PPN: FDS-314GC-024
- UNSPSC: 46171602
CAD
$3386.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Models 304GC, 314GC, 304GC-CN, and 314GC-CN Amplified Speakers are designed to produce crisp, clear tones in supervised alarm notification systems. These amplified speakers can broadcast tones generated by a tone card installed into the speaker (the plug-in 32-tone UTM*) or by a central tone source in a voice evacuation or paging system. When live public address or voice messages are required, plug-in Connector Cards (AM25CK or AM70CK) interface with the Vrms of the EVAC panel.Both amplified speakers are compatible with fire alarm and suppression supervised control panels and power boosters.The rugged construction and high output of these speakers make it ideal for use in harsh environments with high ambient noise levels. Both models feature an internal gain control for adjustment to the suit area. *ULC Fire Listed Models (-CN models) can only be used with a UTM tone card
Features
- Available in 24VDC
- Four wire supervisable power circuit
- Capable of producing tones or voice messages
- Built in gain control, 304GC adjustable between 0 dBa to 108 dBa @ 10' (0 dBa to 118 dBa @1m) 314GC adjustable between 0 dBa to 112 dBa @ 10' (0 dBa to 122 dBa @ 1m)
- Digital signal amplification
- Fused input and output
- Cast aluminum housing, spun aluminum protector
- Indoor/outdoor use
- Type 3R, IP54 enclosure
- CSFM Approved
- 304GC-CN/314GC-CN is ULC Fire Listed
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Body Color
- Gray
- dBa 1 Meter
- 122
- Availability
- Available in 4-6 weeks
- Operating Current Amps
- 1.3
- Operating Voltage
- 24 Vdc
- Audible Signals Body Color
- Gray
- Audible Signals Watts
- 30
- Height
- 13.9 in, 35.306 cm
Weight15.4 lbs
Certification ListingUL Fire
dBa 10 Ft112
Mount TypeSurface
Operating Temp.-40° to +150°F (-40° to +66°C)
Watts30
Audible Signals Certification ListingUL Fire Listed
Depth13.9 in, 35.306 cm
Width10.2 in, 25.908 cm
