SelecTone 30W Amplified Speaker, UL and cUL, 24VAC/DC, Gray
Federal Signal

Federal Signal 302GC-024 SelecTone 30W Amplified Speaker, UL and cUL, 24VAC/DC, Gray

  • MPN: 302GC-024
  • UPC: 782979200901
  • PPN: FDS-302GC-024
  • UNSPSC: 46171602

CAD

$3068.54

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

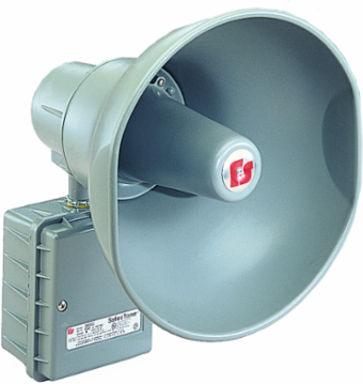

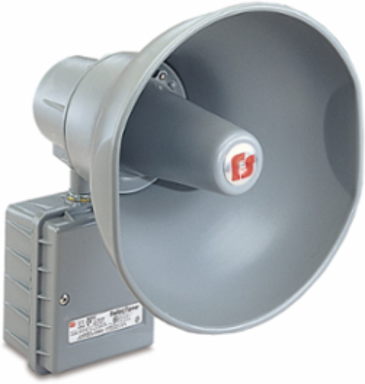

Model 302GC SelecTone® Amplified Speaker is designed to produce crisp, clear tones, digital voice messages and live public address in harsh environments with high ambient noise levels.The rugged speaker cone and projector are constructed of spun aluminum. The internal circuitry, tone module, and gain control are contained in a housing constructed of die-cast aluminum. All surfaces are sealed with powder-coat paint. Dust- and moisture-proof gaskets provide protection from the elements.SelecTone Amplified Speakers are used individually or as part of a plant-wide emergency notification system. Model UTM Universal Tone Module with 32 tones, or model TM33-SD Custom Tone Module is plugged into a single SelecTone Amplified Speaker for stand-alone use or into a SelecTone Command Unit for plant-wide signaling. For plant-wide signaling, a Connector Kit is installed into each SelecTone Amplified Speaker and wired to a central controller. SelecTone Command Units and CommCenter® Digital Message Centers broadcast tones, voice messages, melodies and live public address to an unlimited number of SelecTone Amplified Speakers.Typical applications for SelecTone include emergency warning, plant evacuation, start and dismissal, public address, and process control signaling.

Features

  • Available in 24VAC/DC, 120VAC and 240VAC
  • Built-in gain control, adjustable between 0 dBa to 114 dBa @ 10' (0 dBa to 124 dBa @ 1m)
  • Digital signal amplification
  • Fused input and output
  • Indoor/outdoor use
  • Type 3R, IP54 enclosure
  • CSFM Approved
  • UL and cUL Listed

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
United States
Body Color
Gray
dBa 1 Meter
120
Availability
In Stock - Ships in 2 Bus Days
Operating Current Amps
1.00(VDC)/1.40(VAC)
Standby Current
50 mA @ 24VDC/100 mA @ 24VAC
Audible Signals Voltage
24VAC/DC
Height
12.4 in, 31.496 cm
Weight7.5 lbs
Certification ListingCSFM, UL, cUL
dBa 10 Ft110
Mount TypeSurface
Operating Temp.-67˚ to +150˚F (-55˚ to +66˚C)
Audible Signals Body ColorGray
Depth12.4 in, 31.496 cm
Width7.9 in, 20.066 cm
