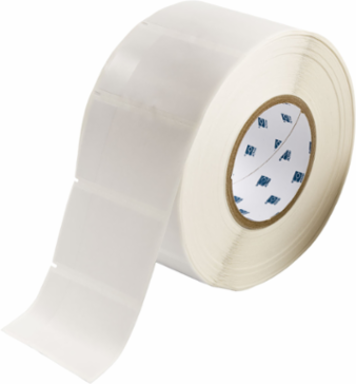

Brady THT-66-417-1.5 Self-laminating Vinyl Labels, 3.187 in H x 1.9 in W Clear/White Roll of 1500
- MPN: THT-66-417-1.5
- UPC: 754473615628
- PPN: BRD-THT-66-417-1.5
- UNSPSC: 55121612
CAD
$752.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Keep your wire identification secure with this self-laminating marker with extra-strong adhesive.
Features
- The extra-strong adhesive makes these markers ideal for small-gauge wires
- Features a white printable area and a clear tail that wraps around the marker
- Tail serves as an overlaminate to protect the print
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Data and Telecommunications Labeling; Electrical Labeling; Laboratory Labeling; Wire and Cable Labeling
- Color
- Clear/White
- Corner Type
- Rounded Corners
- Enables Industry Compliance
- ASTM D 1000; ASTM D 2979; ASTM G 155; UL Recognized
- For Use with Printer
- BBP®81 Label Printer; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
- Primary Noun, Basic Function
- Label
- Printer and Label Applications
- Wire & Cable
- Printer Compatibility (Print)
- BBP12; i7100; i5100
- Quantity per Row
- 1
- Recommended Ribbon Series
- R4300; R4500; R6200
- Shape
- Rectangle
- Total Qty per Pack
- 1500 Label(s) / Roll
- Adhesive (Y/N)
- Yes
- Brady Material Number
- B-417
- Material
- Self-laminating Vinyl
- Overlaminate Included
- Overlaminate Included
- SAP B-Number
- B-417
- Dimensions
- 3.187 in H x 1.9 in W
- Dimensions 2
- 3.187 in H x 1.9 in W
- Height (mm/cm/m)
- 80.95 mm
- Maximum Service Temperature °C
- 70 °C
- Maximum Wire Diameter (in/ft/yd)
- 0.78 in
- Minimum Service Temperature °C
- -40 °C
- Minimum Wire Diameter (in/ft/yd)
- 0.39 in
- Printable Area Dimensions
- 0.75 in H x 1.9 in W
- Printable Area Height (in/ft/yd)
- 0.75 in
- Printable Area Width (in/ft/yd)
- 1.9 in
- Sign Size-General
- 3.187 in x 1.9 in
- Thickness (in/ft/yd)
- 0.004 in
- Vertical Repeat
- 2.15 in
- Web Width (in/ft/yd)
- 3.39 in
- Width (in/ft/yd)
- 1.9 in
Brand NameBrady®
Compatible Surface TypesCurved
DiagramIcon 4 (D with centre dot)
FinishMatte
Label/Media FormatRoll
Print TechnologyThermal Transfer
Printer CompatibilityBBP12; BBP11; BP1244; BP1344; BP2461; BP3481; BP6441; MVP200; MVP300; 300XPlusII; 360XPlusII; 600XPlusII; PR200Plus; PR300Plus; PR600Plus; IP300; IP600; i7100; i5100
Quantity per Roll1500
Recommended RibbonIP-R4307; R4307
Ribbon SeriesR4300; R7950
Suggested Ribbon SeriesR4300; R4500; R6200
Total Quantity1500
Adhesive TypeAcrylic
Label PropertiesSelf Laminating Labels & Wraps
Material PropertiesSelf-laminating
Resistance PropertiesChemical-Resistant; Humidity-Resistant; Oil-Resistant; Water-Resisitant; Weather-Resistant
Core Diameter (mm/cm/m)76.20 mm
Dimensions (Metric)48.26 mm W x 80.95 mm H
Height (in/ft/yd)3.187 in
Label/Tape Size (in/ft/yd)3.187 in H x 1.9 in W
Maximum Service Temperature °F158 °F
Maximum Wire Diameter (mm/cm/m)19.70 mm
Minimum Service Temperature °F-40 °F
Minimum Wire Diameter (mm/cm/m)8.60 mm
Printable Area Dimensions (Metric)19.05 mm H x 48.26 mm W
Printable Area Height (mm/cm/m)19.05 mm
Printable Area Width (mm/cm/m)48.26 mm
Size - Width (mm)48.26 mm
Thickness (mm/cm/m)0.107 mm
Vertical Repeat (mm)54.61 mm
Web Width (mm/cm/m)86.03 mm
Wire Diameter Range0.39 in to 0.78 in
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliant
- Yes
Contains CA PROP 65 SubstanceNo
EU RoHS CompliancePass 2011/65/EU(Pass 2015/863)
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
