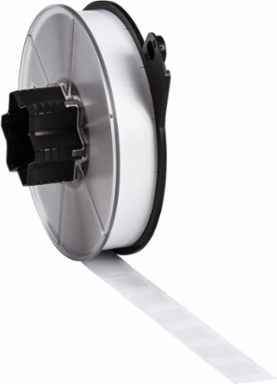

Brady WRAP-4-417 Wraptor™ Self-Laminating Labels Vinyl 1.5 in H x 1 in W Roll of 3600 Labels
- MPN: WRAP-4-417
- UPC: 754473615475
- PPN: BRD-WRAP-4-417
- UNSPSC: 55121612
CAD
$477.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Keep your wire identification secure with this self-laminating marker with extra-strong adhesive.
Features
- The extra-strong adhesive makes these markers ideal for small-gauge wires
- Features a white printable area and a clear tail that wraps around the marker
- Tail serves as an overlaminate to protect the print
Documentation & Downloads
Specifications
Key Specifications
| Applications | Data and Telecommunications Labeling; Electrical Labeling; Laboratory Labeling; Wire and Cable Labeling |
|---|---|
| Color | Clear/White |
| Corner Type | Rounded Corners |
| Enables Industry Compliance | ASTM D 1000; ASTM D 2979; ASTM G 155; UL Recognized |
| For Use with Printer | WRAPTOR™ Wire Marking System |
| Primary Noun, Basic Function | Label |
| Printer and Label Applications | Wire & Cable |
| Printer Compatibility (Print) | Wraptor A6500 |
| Quantity per Row | 1 |
| Recommended Ribbon Series | R4300 |
| Shape | Rectangle |
| Suggested Ribbon Series | R4300 |
| Total Quantity | 3600 |
| Adhesive (Y/N) | Yes |
| Brady Material Number | B-417 |
| Material | Self-laminating Vinyl |
| Overlaminate Included | Overlaminate Included |
| SAP B-Number | B-417 |
| Dimensions (Metric) | 25.40 mm W x 38.10 mm H |
| Height (in/ft/yd) | 1.5 in |
| Label/Tape Size (in/ft/yd) | 1.5 in H x 1 in W |
| Maximum Service Temperature °F | 158 °F |
| Maximum Wire Diameter (mm/cm/m) | 8.10 mm |
| Minimum Service Temperature °C | -40 °C |
| Minimum Wire Diameter (in/ft/yd) | 0.16 in |
| Minimum Wire Gauge | 14 gauge |
| Printable Area Dimensions (Metric) | 12.70 mm H x 25.40 mm W |
| Printable Area Height (mm/cm/m) | 12.70 mm |
| Printable Area Width (mm/cm/m) | 25.40 mm |
| Size - Width (mm) | 25.40 mm |
| Thickness (mm/cm/m) | 0.107 mm |
| Web Width (mm/cm/m) | 32.77 mm |
| Wire Diameter Range | 0.16 in to 0.32 in |
| Wire Gauge Range | 14 gauge to 6 gauge |
| Brand Name | Brady® |
|---|---|
| Compatible Surface Types | Curved |
| Diagram | Icon 6 (D solid) |
| Finish | Matte |
| Label/Media Format | Roll |
| Print Technology | Thermal Transfer |
| Printer Compatibility | Wraptor™ A6500 Wrap Printer Applicator |
| Quantity per Roll | 3600 |
| Recommended Ribbon | R4306 |
| Ribbon Series | R4300 |
| Software Compatibility | Brady Workstation, LabelMark |
| Total Qty per Pack | 3600 Piece(s) / Roll |
| Trade Name | Wraptor™ |
| Adhesive Type | Acrylic |
| Label Properties | Self Laminating Labels & Wraps |
| Material Properties | Self-laminating |
| Resistance Properties | Chemical-Resistant; Humidity-Resistant; Oil-Resistant; Water-Resisitant; Weather-Resistant |
| Dimensions | 1.5 in H x 1 in W |
| Dimensions 2 | 1.5 in H x 1 in W |
| Height (mm/cm/m) | 38.10 mm |
| Maximum Service Temperature °C | 70 °C |
| Maximum Wire Diameter (in/ft/yd) | 0.32 in |
| Maximum Wire Gauge | 6 gauge |
| Minimum Service Temperature °F | -40 °F |
| Minimum Wire Diameter (mm/cm/m) | 4.00 mm |
| Printable Area Dimensions | 0.5 in H x 1 in W |
| Printable Area Height (in/ft/yd) | 0.5 in |
| Printable Area Width (in/ft/yd) | 1 in |
| Sign Size-General | 1.5 in x 1 in |
| Thickness (in/ft/yd) | 0.004 in |
| Vertical Repeat (mm) | 41.30 mm |
| Width (in/ft/yd) | 1 in |
| Wire Gauge | 14-6 |
Regulatory Information
| Contains CA PROP 65 Substance | No - Does not contain |
|---|---|
| Contains Heavy Metal(s) | No - Does not contain |
| EU RoHS Compliant | Yes |
| Contains CA PROP 65 Substance | No |
|---|---|
| EU RoHS Compliance | Pass 2011/65/EU(Pass 2015/863) |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
