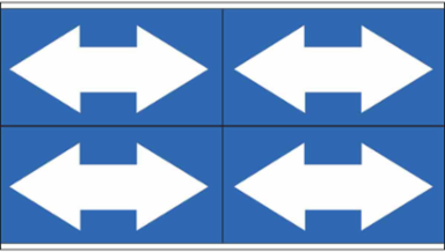

Brady 93248 Self-Sticking Vinyl Dual Arrow, 1.125" H x 7" W, White on Blue, Card of 4 Each
- MPN: 93248
- UPC: 754473932480
- PPN: BRD-93248
- UNSPSC: 55121737
CAD
$4.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Use durable indoor/outdoor B-946 Self-Sticking Vinyl Arrows in conjunction with vinyl pipemarkers to indicate flow direction. Mounted on easy-to-use cards.
Features
- Arrows meets ASME (ANSI) A13.1 Standards when used in conjunction with an appropriate pipemarker
- High gloss, durable, flexible vinyl with a permanent cold temperature pressure sensitive acrylic adhesive
- Good chemical, oil and water resistance
- Average outdoor durability 8-10 years
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Pipe and Valve Marking
- Brand Name
- Brady®
- Compatible Surface Types
- General
- Finish
- Gloss
- Pipe Marker Style
- 4
- Primary Noun, Basic Function
- Pipe Marker
- Quantity per Card or Sheet
- 4
- Self-Adhesive Pipe Marker Format
- Die-Cut on Cards
- Brady Material Number
- B-946
- Label Properties
- Aggressive Adhesive Labels; Permanent Adhesive Labels; Standard High Quality Labels
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant
- Average Outdoor Durability
- 8 to 10 Years
- Dimensions (Metric)
- 28.6 mm H
- Height (in/ft/yd)
- 1.125 in
- Maximum Service Temperature °C
- 82 °C
- Minimum Application Temperature °C
- -18 °C
- Minimum Service Temperature °C
- -40 °C
- Roll/Tape Size (in/ft/yd)
- 1.125 in H x 7 in W
- Size
- 4
- Thickness (mm/cm/m)
- 0.102 mm
- Width (mm/cm/m)
- 177.8 mm
Arrow DirectionDual
ColorWhite on Blue
Enables Industry ComplianceANSI A13.1-2007
Pipe Marker Mounting StyleSelf-Adhesive
Pre-Printed Areas on LabelArrows
Printer and Label ApplicationsGeneral Identification; Pipe Marker
Reflective TypeNon-Reflective
Adhesive TypePermanent Acrylic
Indoor or Outdoor UseOutdoor Use
MaterialVinyl
SAP B-NumberB-946
Dimensions1.125 in H x 7 in W
Dimensions 21.125 in H x 7 in W
Height (mm/cm/m)28.6 mm
Maximum Service Temperature °F180 °F
Minimum Application Temperature °F0 °F
Minimum Service Temperature °F-40 °F
Sign Size-General1.125 in x 7 in
Thickness (in/ft/yd)0.004 in
Width (in/ft/yd)7 in
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
