Leviton GSCA1-2C 15 Amp GFCI Cord Set, 2 Foot, 14/3 SJTW, Automatic Reset
- MPN: GSCA1-2C
- UPC: 078477682951
- PPN: LEV-GSCA1-2C
CAD
$119.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

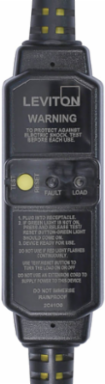

15 Amp, 120 VAC, Self-Test Automatic Reset GFCI Cord Set, 2 Foot, 14-3 SJTW Cord, Molded on NEMA Plug (5-15P) and Connector (5-15R), Black
Features
- Satisfies latest UL 943 self-test requirement
- Improve safety – protect critical personnel from electrical shocks
- Withstand outdoor conditions – rainproof and outdoor rated devices are OSHA compliant and feature weather-resistant SJTW cables
- Ideal for – vending machines, construction sites, RV parks, marinas, and spas/hot tubs
- Automatic reset – automatically restore power to connected equipment when plugged in or after power interruption, ideal for hard to access locations
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NEMA | WD-6 |
| UL 498 | File E-48380 |
| Warranty | 2-Year Limited |
| CSA C22.2 | File LR-57811 |
|---|---|
| NOM | 057 |
| UL 943 | Class A (GFCI) |
Material Specifications
| Blades/Contacts | Brass |
|---|---|
| Color | Black |
| Body Material | Polycarbonate |
|---|
Mechanical Specifications
| Cord Length | 2 FT. |
|---|---|
| Product ID | Ratings marked on device label |
| Cord Type | 14/3 SJTW |
|---|
Environmental Specifications
| Flammability | Rated V-2 per UL94 |
|---|
| Operating Temperature | -35°C to 66°C |
|---|
Electrical Specifications
| Amperage | 15 A |
|---|---|
| Grounding | GFCI Ground Fault |
| Temperature Rise | Max 30C after 50 cycles OL at 150 percent rated current |
| Voltage | 120 VAC |
| Current Interrupting | 2 kA |
|---|---|
| Pole | 2 |
| Trip Level | 5mA plus or minus 1mA |
| Wire | 3 |
AC Horsepower Ratings
| At Rated Voltage | 3/4 Horsepower |
|---|
