Leviton

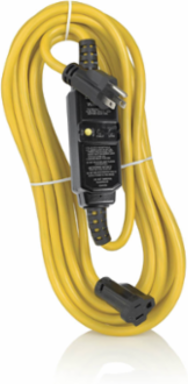

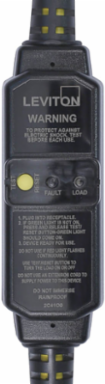

Leviton GSCA1-25C 15 Amp GFCI Cord Set, 25 Foot, 120 VAC, Automatic Reset, Weather-Resistant

15 Amp GFCI Cord Set, 25 Foot, 120 VAC, Automatic Reset, Weather-Resistant
15 Amp GFCI Cord Set, 25 Foot, 120 VAC, Automatic Reset, Weather-Resistant
  • MPN: GSCA1-25C
  • UPC: 078477682982
  • PPN: LEV-GSCA1-25C

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$152.11/ EA

Description

15 Amp, 120 VAC, Self-Test Automatic Reset GFCI Cord Set, 25 Foot, 14-3 SJTW Cord, Molded on NEMA Plug (5-15P) and Connector (5-15R), Black

Features

  • Satisfies latest UL 943 self-test requirement
  • Improve safety – protect critical personnel from electrical shocks
  • Withstand outdoor conditions – rainproof and outdoor rated devices are OSHA compliant and feature weather-resistant SJTW cables
  • Ideal for – vending machines, construction sites, RV parks, marinas, and spas/hot tubs
  • Automatic reset – automatically restore power to connected equipment when plugged in or after power interruption, ideal for hard to access locations

Specifications

Standards and Certifications

ANSI
C-73
NEMA
WD-6
UL 498
File E-48380
Warranty
2-Year Limited
CSA C22.2File LR-57811
NOM057
UL 943Class A (GFCI)

Material Specifications

Blades/Contacts
Brass
Color
Black
Body MaterialPolycarbonate

Mechanical Specifications

Cord Length
25 FT.
Product ID
Ratings marked on device label
Cord Type14/3 SJTW

Specifications

Country of Origin
China
RoHS CompliantFalse

Environmental Specifications

Flammability
Rated V-2 per UL94
Operating Temperature-35°C to 66°C

Electrical Specifications

Amperage
15 A
Grounding
GFCI Ground Fault
Temperature Rise
Max 30C after 50 cycles OL at 150 percent rated current
Voltage
120 VAC
Current Interrupting2 kA
Pole2
Trip Level5mA plus or minus 1mA
Wire3

AC Horsepower Ratings

At Rated Voltage
3/4 Horsepower
