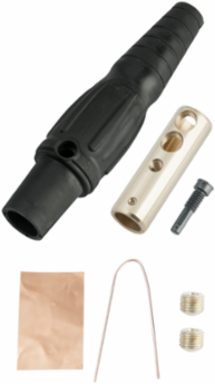

Pass & Seymour PS40FBBK Series 16 In-Line Connectors 400A 600V, Cable Size 2/0 - 4/0, 6.8 Inch Length
Pass & Seymour PS40FBBK Series 16 In-Line Connectors 400A 600V, Cable Size 2/0 - 4/0, 6.8 Inch Length
- MPN: PS40FBBK
- UPC: 785007308150
- PPN: P-S-PS40FBBK
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$70.61/ EA
Description
400A 600V, Cable Size 2/0 - 4/0, Female Cam-Type Plug, Yellow
Features
- Thermoplastic elastomer housing for outstanding impact and chemical resistance
- Exceptional seal for maintaining NEMA Type 3R and 4 integrity
- Non-conductive retaining screw helps to insure no contact with live parts, along with providing stability to the fully assembled product
- Heavy-duty brass male and female contacts provide a superior and consistent means of conductivity
- Heavy-duty hex set screws allow greater termination torque
- Copper wire provides quality strain relief
- Copper shim bundles wire strands to reduce ''splaying.''
Specifications
Specifications
- Length
- 6.8 in
- Color
- Black
- Environmental Conditions
- Operating Temperature: Maximum continuous +75°C, minimum -40°C without impact: Flammability UL94 V2: Enclosure: NEMA Type 3R and 4
- Standard
- UL
- Standard
- cCSAus
- Amperage
- 400.0 A
- Indoor/Outdoor
- Indoor
- Number of Poles
- Single Pole
- Application Sector
- Industrial
- NEMA Rating
- NEMA 3R and 4 for indoor applications
Country of OriginMexico
Product LinePass & Seymour
FlangedNo
TypeConnector
Voltage600.0 V
Warranty Type1-Year
FeaturesChemical Resistant
Application SectorCommercial
Terminal Accommodation2/0 - 4/0
Special FeaturesThermoplastic elastomer housing for outstanding impact and chemical resistance, as well as an exceptional seal for maintaining NEMA Type 3R and 4 integrity. Non-conductive retaining screw helps to insure no contact with live parts, along with providing stability to the fully assembled product. Heavy-duty brass male and female contacts provide a superior and consistent means of conductivity. Heavy-duty hex set screws allow greater termination torque. Copper wire provides quality strain relief. Copper shim bundles wire strands to reduce "splaying."
