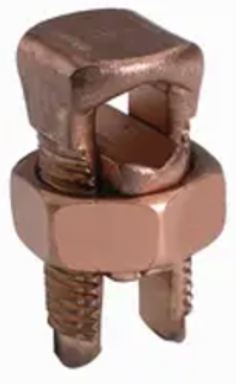

Burndy KS17 Copper Split Bolt, 8 AWG to 6 AWG, 1.14 Inch Length, UL Listed for Direct Burial
- MPN: KS17
- UPC: 781810011508
- PPN: BUR-101150
- UNSPSC: 39121408
CAD
$12.14
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Split Bolt, Cu: 8 AWG (Str)-6 AWG (Sol) (Run & Tap),Length:1.14.
Features
- UL467 Listed for Direct Burial applications in earth or concrete
- Compact, high-strength, copper alloy with free-running threads and easy to grip wrench flats
- Highly resistant to cracking and corrosion
Documentation & Downloads
Specifications
Additional
- Conductor Size Range
- 8 AWG Stranded - 6 AWG Solid
- Operating Temperature Range
- 0 - 90 C (32 - 194 F)
- Width
- 0.45 in. (11 mm)
- Material
- Copper
- Application
- For Direct Burial in Earth or Concrete
- Connector Type
- Split Bolt
- Standard
- RUS
Installation Torque165 in-lb
Length1.14 in.
Cross Flats0.63 in.
CertificationUL Listed, UL Listed for Direct Burial, Prop 65 Compliant, CSA Approved: No, ETL: No, cULus: No
Plating TypeUnplated
Country of OriginUS
Buy American CompliantYes
