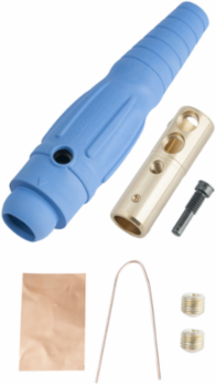

Pass & Seymour PLS1840FBL Series 18 In-Line Connectors, Accepts #6 to 4/0 Size Wire, NEMA Rated
Pass & Seymour PLS1840FBL Series 18 In-Line Connectors, Accepts #6 to 4/0 Size Wire, NEMA Rated
- MPN: PLS1840FBL
- UPC: 785007255126
- PPN: P-S-PLS1840FBL
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$61.56/ EA
Description
Series 18 In Line Connectors - fivemale
Features
- Interchangeable with Canadian CAM devices from other manufacturers. Ball nose design achieves NEMA 3R, 4 rating. Designed specifically for Sea Way cable. Accepts #6 through 4/0 size wire.
- Double set screws for premium wire retention. Locking screw prevents contact from rotating inside housing.
Specifications
Specifications
- Country of Origin
- Mexico
- Flanged
- No
- Standard
- cUL
- Standard
- cCSAus
- Amperage
- 400.0 A
- Features
- Weatherproof
- Terminal Accommodation
- 4/0
- Application Sector
- Commercial
- NEMA Rating
- NEMA 3R and 4 for indoor applications
- Color
- Blue
Environmental ConditionsOperating Temperature: Maximum continuous +75°C, minimum -40°C without impact: Flammability UL94 V2: Enclosure: NEMA Type 3R and 4
StandardUL
TypeConnector
Voltage600.0 V
Warranty Type1-Year
Indoor/OutdoorIndoor
Number of PolesSingle Pole
Application SectorIndustrial
Special FeaturesInterchangeable with Canadian CAM devices from other manufacturers. Ball nose design achieves NEMA 3R, 4 rating. Designed specifically for Sea Way cable. Accepts #6 through 4/0 size wire. Double set screws for premium wire retention. Locking screw prevents contact from rotating inside housing.
Product LinePass & Seymour
