Pass & Seymour

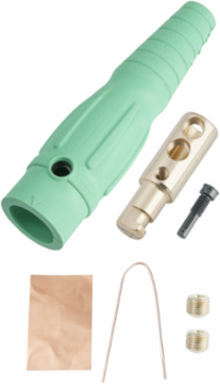

Pass & Seymour PLS1820MG Series 18 In-Line Connectors, 6.875 Inch Length, Green

Series 18 In-Line Connectors, 6.875 Inch Length, Green
  • MPN: PLS1820MG
  • UPC: 785007255287
  • PPN: P-S-PLS1820MG

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$61.56/ EA

Description

Series 18 In Line Connectors - Male

Features

  • Interchangeable with Canadian CAM devices from other manufacturers. Ball nose design achieves NEMA 3R, 4 rating. Designed specifically for Sea Way cable. Accepts #6 through 4/0 size wire.
  • Double set screws for premium wire retention. Locking screw prevents contact from rotating inside housing.

Specifications

Specifications

Length
6.875 in
Country of Origin
Mexico
Environmental Conditions
Operating Temperature: Maximum continuous +75°C, minimum -40°C without impact: Flammability UL94 V2: Enclosure: NEMA Type 3R and 4
Standard
cUL
Standard
cCSAus
Amperage
400.0 A
Application Sector
Commercial
NEMA Rating
NEMA 3R and 4 for indoor applications
ColorGreen
Product LinePass & Seymour
StandardUL
Wire Size2/0
Voltage600.0 V
Number of PolesSingle Pole
Application SectorIndustrial
Special FeaturesInterchangeable with Canadian CAM devices from other manufacturers. Ball nose design achieves NEMA 3R, 4 rating. Designed specifically for Sea Way cable. Accepts #6 through 4/0 size wire. Double set screws for premium wire retention. Locking screw prevents contact from rotating inside housing.
