Pass & Seymour PLS182MW Series 18 In-Line Connectors, White, 6.875 Inch Length, Wire Size #6 to 4/0
- MPN: PLS182MW
- UPC: 785007255096
- PPN: P-S-PLS182MW
CAD
$64.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

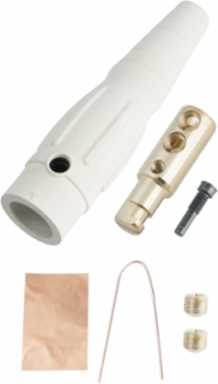

Series 18 In-Line Connectors, White, 6.875 Inch Length, Wire Size #6 to 4/0
Features
- Interchangeable with Canadian CAM devices from other manufacturers. Ball nose design achieves NEMA 3R, 4 rating. Designed specifically for Sea Way cable. Accepts #6 through 4/0 size wire.
- Double set screws for premium wire retention. Locking screw prevents contact from rotating inside housing.
Documentation & Downloads
Specifications
Key Specifications
- Length
- 6.875 in
- Environmental Conditions
- Operating Temperature: Maximum continuous +75°C, minimum -40°C without impact: Flammability UL94 V2: Enclosure: NEMA Type 3R and 4
- Standard
- cUL
- Voltage
- 600.0 V
- Wire Size
- 6 - 2 AWG
- Application Sector
- Commercial
- NEMA Rating
- NEMA 3R and 4 for indoor applications
- Color
- White
Country of OriginMexico
StandardUL
StandardcCSAus
Amperage400.0 A
Number of PolesSingle Pole
Application SectorIndustrial
Special FeaturesInterchangeable with Canadian CAM devices from other manufacturers. Ball nose design achieves NEMA 3R, 4 rating. Designed specifically for Sea Way cable. Accepts #6 through 4/0 size wire. Double set screws for premium wire retention. Locking screw prevents contact from rotating inside housing.
Product LinePass & Seymour
