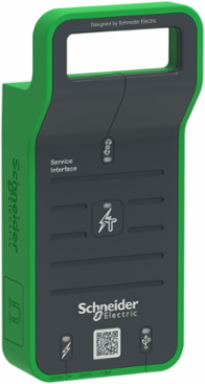

Schneider Electric LV485500 Service interface kit, Pact series circuit breakers
- MPN: LV485500
- PPN: SCH-LV485500
- UNSPSC: 39121601
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Service interface kit, Pact series circuit breakers
Documentation & Downloads
Specifications
Key Specifications
- Width
- 451 mm
- Weight
- 2.8 kg
- Range Compatibility
- Masterpact MasterPact NT || Masterpact MasterPact NW || EasyPact EasyPact MVS || ComPact ComPact NS630b...1600 || ComPact ComPact NS1600b...3200
- Accessory / Separate Part Category
- maintenance accessory
- Provided Equipment
- 1 Power supply || 1 USB cable || 3 test cables
Height106 mm
[Ue] Rated Operational Voltage115/230 V AC +/- 10 % 47...63 Hz
Response Time0...7500 s +/- 0.1 %
Product Or Component Typetesting kit
Complementary
- Product Certifications
- CE || UL
- Standards
- IEC 61010-1 || IEC 61010-2-030 || UL 61010-1 || CSA C22.2 No 61010-1 || EN 60068-2-32
- [Uimp] Rated Impulse Withstand Voltage
- 12 kV
- Depth
- 358 mm
Height106 mm
Ip Degree Of ProtectionIP20
Width451 mm
Net Weight2.8 kg
Environment
- Ambient Air Temperature For Operation
- -10-55 °C
- Relative Humidity
- 5-95 % 55-55 °C
- Overvoltage Category
- II
Ambient Air Temperature For Storage-40-85 °C
Electromagnetic Compatibilityconducted RF disturbances EN 55011 || emission tests EN 55032 || immunity for industrial environments IEC 61000-6-2 || emission standard for industrial environments IEC 61000-6-4 || limits for harmonic current emissions IEC 61000-3-2 || limitation of voltage changes, voltage fluctuations and flicker in low-voltage IEC 61000-3-3
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2007004EN
- Eu Rohs Directive
- Compliant with Exemptions
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Circularity ProfileENVEOLI2007004EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
