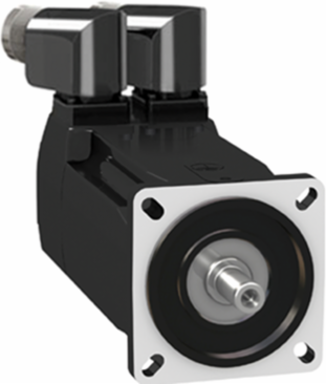

Lexium 32 Servo Motor, 1.2Nm, 8000rpm, IP65/IP67, 16bit Encoder
Schneider Electric

Schneider Electric BMH0701P26A2A Lexium 32 Servo Motor, 1.2Nm, 8000rpm, IP65/IP67, 16bit Encoder

  • MPN: BMH0701P26A2A
  • PPN: SCH-BMH0701P26A2A

CAD

$1396.35

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

The Lexium 32 Servo Motor from Schneider Electric is engineered for precision and durability in automation and control applications. With a torque rating of 1.2Nm and capable of reaching speeds up to 8000rpm, this versatile motor is ideal for a range of motion control tasks. Its robust design meets IP65/IP67 standards, ensuring reliable performance even in challenging environments. Additionally, the inclusion of a 16-bit encoder enhances the motor's accuracy, making it an exceptional choice for applications requiring meticulous motion control.

Documentation & Downloads

Specifications

Additional

Peak Stall Torque
4.2 N.m
Nominal Output Power
350 W, 700 W
Nominal Speed
3000 rpm, 5000 rpm
Continuous Stall Current
1.78 A
Rated Supply Voltage
400-480 V, three phase
Length
122 mm (4.80 in)
Shaft Length
23 mm (0.91 in)
Number Of Motor Poles
10
Material
Not specified
IP Rating
IP65 standard, IP67 with IP67 kit
Warranty
18 months
Continuous Stall Torque1.2 N.m, 1.4 N.m
Nominal Torque1.1 N.m, 1.3 N.m
Maximum Speed8000 rpm
Maximum Current Irms6 A
Torque1.2 N.m
Shaft Diameter11 mm (0.43 in)
Motor Flange Size70 mm (2.76 in)
Mounting SupportInternational standard flange
Type Of CoolingNatural convection
ComplianceRoHS Compliant, Mercury free
Country Of OriginGermany
