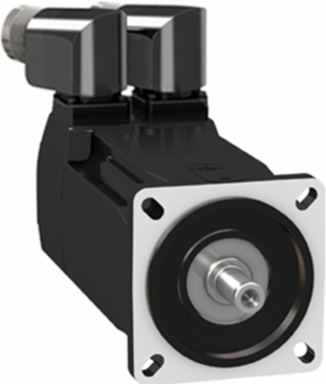

Schneider Electric BMH0701T27F2A Lexium 32 Servo Motor, 1.4Nm Torque, 8000rpm, IP65/IP67, Brake
- MPN: BMH0701T27F2A
- PPN: SCH-BMH0701T27F2A
CAD
$2232.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Lexium 32 Servo Motor from Schneider Electric stands out for its robust performance and versatility in motion control applications. With a torque rating of 1.4Nm and an impressive operational speed of up to 8000rpm, this servo motor is designed to tackle a wide range of tasks in automation and control environments. Its IP65/IP67 rating ensures reliable operation in environments where dust and moisture may be a concern, while the integrated brake adds an extra layer of safety and control. This combination of features makes it an ideal choice for those seeking dependable performance in complex automation systems.
Documentation & Downloads
Specifications
Additional
- Torque
- 1.4 N.m (12.39 lbf.in)
- Maximum Speed
- 8000 rpm
- Nominal Output Power
- 350 W (115 V), 450 W (230 V)
- Maximum Current Irms
- 9.6 A
- Phase
- Three phase
- Brake Power
- 7 W
- Shaft Diameter
- 11 mm (0.43 in)
- Length
- 161 mm (6.34 in)
- Mounting Support
- International standard flange
- Centring Collar Diameter
- 60 mm
- Mounting Holes Diameter
- 5.5 mm
- Number Of Motor Poles
- 10
- Electrical Connection
- Rotatable right-angled connectors
- Encoder
- 16 multiturn SinCos Hiperface
- Pvc Free
- Yes
- Warranty
- 18 months
- Range Compatibility
- Lexium 32
Peak Stall Torque4 N.m (35.4 lbf.in) at 230 V, 4.2 N.m (37.17 lbf.in) at 115 V
Nominal Speed2500 rpm (115 V), 4000 rpm (230 V)
Continuous Stall Current2.85 A
Rated Supply Voltage240 V
Holding Torque3 N.m (26.55 lbf.in) holding brake
BrakeWith holding brake
Shaft Length23 mm (0.91 in)
Motor Flange Size70 mm (2.76 in)
Circle Diameter Of The Mounting Holes82 mm
Centring Collar Depth2.5 mm
Number Of Mounting Holes4
Rotor Inertia0.7 kg.cm²
Materialsmooth shaft
ComplianceREACH, RoHS, Mercury free, PVC free, EU RoHS Directive Pro-active compliance
Mercury FreeYes
Country of OriginGermany (DE)
