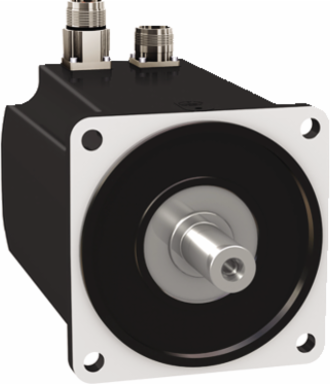

Schneider Electric BMH1401P11F1A Lexium 32 Servo Motor 10.3 Nm 4000 rpm Keyed Shaft IP54
- MPN: BMH1401P11F1A
- PPN: SCH-BMH1401P11F1A
CAD
$3340.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Lexium 32 Servo Motor from Schneider Electric offers robust performance with a torque rating of 10.3 Nm and an impressive maximum speed of 4000 rpm. Designed to enhance automation and control systems, this motor features a keyed shaft for reliable coupling and alignment in various applications. With an IP54 rating, it provides a degree of protection against dust and moisture, making it suitable for diverse industrial environments. Ideal for motion control tasks, this servo motor combines precision and durability, ensuring consistent operation while meeting the demands of modern automation systems.
Documentation & Downloads
Specifications
Additional
- Continuous Stall Torque
- 10.3 N.m
- Nominal Output Power
- 1450 W (230 V single phase), 2400 W (400 V/480 V three phase)
- Nominal Speed
- 2000 rpm (230 V single phase), 3000 rpm (400 V/480 V three phase)
- Continuous Stall Current
- 8.58 A
- Holding Torque
- 18 N.m holding brake
- Phase
- Three phase
- Maximum Radial Force Fr
- 1930 N (1000 rpm), 1530 N (2000 rpm), 1340 N (3000 rpm)
- Network Number Of Phases
- Three phase
- Shaft Length
- 50 mm (1.97 in)
- Motor Flange Size
- 140 mm (5.51 in)
- Mounting Holes Diameter
- 11 mm (0.43 in)
- Number of Mounting Holes
- 4
- Centring Collar Diameter
- 130 mm
- Material
- Not specified
- Stator Resistance
- 0.69 Ohm (20 6C)
- Rotor Inertia
- 17.96 kg.cm8
- Number of Motor Poles
- 10
- Holding Brake
- With
Peak Stall Torque30.8 N.m
Nominal Torque6.9 N.m (230 V single phase), 7.7 N.m (400 V/480 V three phase)
Maximum Current Irms29.8 A
Maximum Mechanical Speed4000 rpm
Supply Voltage480 V
Maximum Axial Force Fa0.2 x Fr
Continuous Power2.85 W
Shaft Diameter24 mm (0.94 in)
Key Width40 mm (1.57 in)
Length187 mm (7.36 in)
Circle Diameter of Mounting Holes165 mm (6.50 in)
Shaft EndKeyed
Electrical ConnectionStraight connectors
Type Of CoolingNatural convection
Stator Inductance6.7 mH (20 6C)
Brake Pull-in Power18 W
Feedback TypeSingle turn SinCos Hiperface
Number of Motor Stacks1
