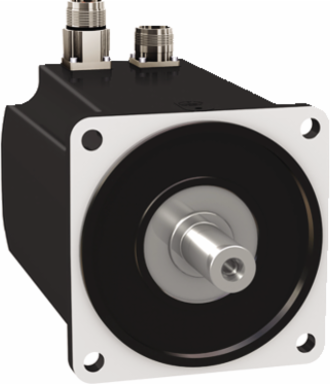

Schneider Electric BMH1402P37A1A Lexium 32 Servo Motor, 18.5Nm, 4000rpm, Keyed Shaft, IP65/IP67
- MPN: BMH1402P37A1A
- PPN: SCH-BMH1402P37A1A
CAD
$3283.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Lexium 32 Servo Motor from Schneider Electric is engineered for high-performance motion control applications. With a robust torque rating of 18.5 Nm and an impressive speed capability of 4000 rpm, this motor excels in demanding environments while maintaining precise control. Its keyed shaft design ensures secure coupling and reliable performance, making it an ideal choice for various automation and control tasks. Additionally, with an IP65/IP67 rating, it offers exceptional protection against dust and moisture, ensuring longevity and reliability in industrial settings.
Documentation & Downloads
Specifications
Additional
- Peak Stall Torque
- 50.3 N.m
- Nominal Output Power
- 3500 W
- Nominal Speed
- 3000 rpm
- Maximum Current Irms
- 57.4 A
- Voltage
- 480 V
- Torque Constant
- 1.1 N.m/A 120 °C
- Stator Inductance
- 3 mH 20 °C
- Stator Electrical Time Constant
- 13 ms 20 °C
- Maximum Radial Force
- 2240 N 1000 rpm
- Length
- 192 mm
- Shaft Length
- 50 mm
- Motor Flange Size
- 140 mm
- Number of Motor Poles
- 10
- Mounting Holes Diameter
- 11 mm
- Centering Collar Diameter
- 130 mm
- Shaft Type
- Keyed
- Cooling Type
- Natural convection
- Compliance
- RoHS, Mercury Free, PVC Free
Continuous Stall Torque18.5 N.m
Nominal Torque12.2 N.m
Maximum Speed4000 rpm
Continuous Stall Current16.83 A
PhaseThree phase
Back EMF Constant70.7 V/krpm 120 °C
Stator Resistance0.23 Ohm 20 °C
Torque18.5 N.m
Maximum Axial Force0.2 x Radial Force
Shaft Diameter24 mm
Key Width40 mm
Number of Motor Stacks2
Number of Mounting Holes4
Mounting Holes Circle Diameter165 mm
Centering Collar Depth3.5 mm
Mounting Supportinternational standard flange
Net Weight12 kg
Country of OriginGermany
