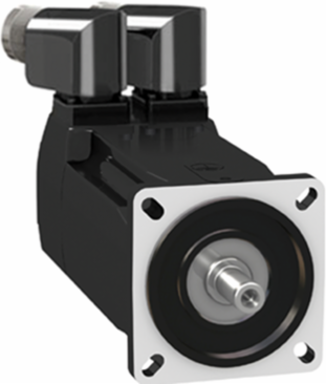

Schneider Electric BMH0702P21F2A Lexium 32 Servo Motor, 2.5Nm Torque, 8000rpm, IP65/IP67, 128bit Encoder
- MPN: BMH0702P21F2A
- PPN: SCH-BMH0702P21F2A
CAD
$2190.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Lexium 32 Servo Motor from Schneider Electric represents a remarkable advancement in motion control technology, designed to deliver robust performance in demanding environments. With a torque of 2.5Nm and a high-speed capability of up to 8000rpm, this motor is well-suited for a variety of automation applications. Its IP65/IP67 rating ensures reliable operation in challenging conditions, protecting against dust and water exposure. Utilizing a sophisticated 128bit encoder, it offers precise positioning and excellent feedback, making it an essential component for any modern automation system.
Documentation & Downloads
Specifications
Additional
- Torque
- 2.5 N.m continuous stall torque, 3 N.m holding torque, 7.4 N.m peak stall torque
- Nominal Torque
- 2.2 N.m
- Nominal Output Power
- 700 W
- Continuous Stall Current
- 2.94 A
- Voltage
- 480 V
- Holding Brake
- with (holding torque 3 N.m)
- Length
- 193 mm (7.60 in)
- Shaft Length
- 23 mm (0.91 in)
- Number of Mounting Holes
- 4
- Circle Diameter of Mounting Holes
- 82 mm (3.23 in)
- Material Compliance
- Mercury free, PVC free
- IP Rating
- IP65 standard, IP67 with kit
Maximum Speed8000 rpm
Nominal Speed3000 rpm
Maximum Current Irms9.7 A
Continuous Power1.51 W
Phasesthree phase
Rotor Inertia1.24 kg.cm²
Shaft Diameter11 mm (0.43 in)
Motor Flange Size70 mm (2.76 in)
Mounting Holes Diameter5.5 mm (0.22 in)
Net Weight3.3 kg
RoHS CompliancePro-active (EU and China)
