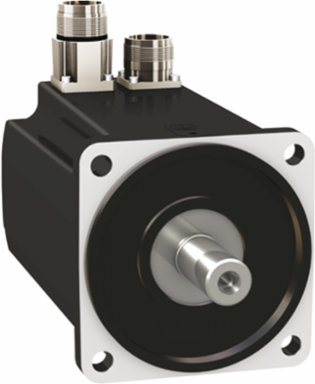

Schneider Electric BMH1001T12A1A Lexium 32 Servo Motor 3.4 Nm 6000 rpm IP54 Keyed Shaft
- MPN: BMH1001T12A1A
- PPN: SCH-BMH1001T12A1A
CAD
$2345.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Engineered for precision and reliability, the Lexium 32 Servo Motor from Schneider Electric offers a robust solution for a wide range of automation and motion control applications. With a torque rating of 3.4 Nm and a high rotational speed of 6000 rpm, this motor is designed to deliver excellent performance while ensuring operational efficiency. Its IP54 rating provides protection against dust and splashing water, making it suitable for demanding environments. The keyed shaft design enhances stability during operation, making it a versatile choice for various industrial tasks.
Documentation & Downloads
Specifications
Additional
- Torque
- 8.9 N.m, 10.2 N.m peak stall torque; 3.4 N.m continuous stall torque
- Maximum Speed
- 6000 rpm
- Maximum Current Irms
- 15 A, 19.4 A
- Rated Supply Voltage
- 240 V
- Length
- 128.6 mm (5.06 in)
- Shaft Length
- 40 mm (1.57 in)
- Motor Flange Size
- 100 mm (3.94 in)
- Net Weight
- 3.34 kg (7.36 lb)
- Number of Motor Poles
- 10
- Type of Cooling
- natural convection
- Material
- Not specified
Nominal Output Power700 W, 900 W
Nominal Speed2000 rpm, 3000 rpm
Continuous Stall Current5.11 A
PhaseThree phase
Shaft Diameter19 mm (0.75 in)
Key Width30 mm (1.18 in)
Mounting Holes4 holes, 9 mm diameter, 115 mm circle diameter
Shaft Endkeyed
Rotor Inertia3.19 kg.cm²
Feedback Typemultiturn SinCos Hiperface
ComplianceRoHS, REACh, PVC free, Mercury free, Green Premium product, IP54
