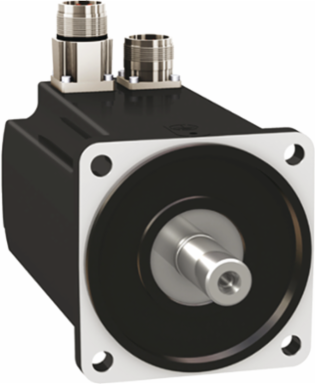

Schneider Electric BMH1002T01F1A Lexium 32 Servo Motor 6Nm 6000rpm IP54 with Brake
- MPN: BMH1002T01F1A
- PPN: SCH-BMH1002T01F1A
CAD
$2596.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Lexium 32 Servo Motor from Schneider Electric is engineered for advanced automation and control applications, offering a robust performance with a torque of 6Nm and a maximum speed of 6000rpm. This motor, equipped with an IP54 rating, ensures reliable operation in various environments, protecting against dust and water splashes. The addition of a brake enhances safety and control, making this servo motor an excellent choice for motion control tasks where precision and efficiency are paramount. Its versatility allows it to seamlessly integrate into a variety of systems, meeting the demands of modern industrial applications.
Documentation & Downloads
Specifications
Additional
- Torque
- 6 N.m continuous stall torque, 10.3 N.m peak stall torque
- Nominal Output Power
- 750 W, 1450 W
- Phase
- Three phase
- IP Degree of Protection
- IP54
- Shaft Diameter
- 19 mm (0.75 in)
- Motor Flange Size
- 100 mm (3.94 in)
- Mounting Holes Diameter
- 9 mm (0.35 in)
- Length
- 202.3 mm (7.96 in)
- Sustainable Offer Status
- Green Premium product
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP111002EN
- Device Short Name
- BMH
- Product Compatibility
- LXM32.D30M2 115 V single phase, LXM32.D30M2 230 V single phase
Speed2000 rpm, 3000 rpm nominal; 6000 rpm maximum mechanical speed
Voltage240 V rated supply voltage
Holding BrakeWith holding brake, 5.5 N.m holding torque
TypeServo motor
Shaft Length40 mm (1.57 in)
Number of Mounting Holes4
Circle Diameter of the Mounting Holes115 mm (4.53 in)
Net Weight6.4 kg (14.11 lb)
ComplianceGreen Premium, REACh, EU RoHS, Mercury free, China RoHS, PVC free, RoHS Exemption
China RoHS RegulationCompliant
PVC FreeYes
Product Or Component TypeServo motor
Range CompatibilityLexium 32
