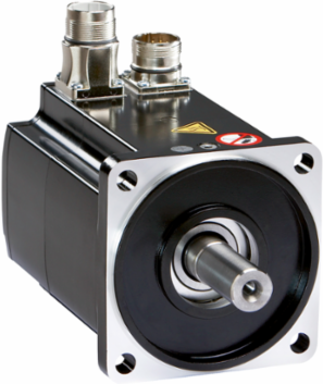

Schneider Electric BMH2053P17F2A Lexium 32 Servo Motor 84Nm 3800rpm IP54 with Brake
- MPN: BMH2053P17F2A
- PPN: SCH-BMH2053P17F2A
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric BMH2053P17F2A Lexium 32 Servo Motor is engineered for high-performance motion control applications, providing an impressive torque of 84Nm and capable of achieving speeds of up to 3800rpm. This servo motor is designed with an IP54 rating, offering protection against dust and water splashes, making it suitable for a variety of industrial environments. Additionally, the inclusion of a brake enhances operational safety and efficiency, ensuring precise control during stop-and-hold operations. Ideal for automation and motion control tasks, this servo motor exemplifies Schneider Electric's commitment to quality and innovation in industrial automation solutions.
Documentation & Downloads
Specifications
Additional
- Torque
- 84 N.m continuous stall torque, 232 N.m peak stall torque
- Nominal Torque
- 52.2 N.m
- Maximum Speed
- 3800 rpm
- Maximum Current Irms
- 72 A
- Continuous Power
- 9.6 W
- Brake
- With
- Rated Supply Voltage
- 480 V
- Shaft Diameter
- 38 mm (1.50 in)
- Key Width
- 70 mm (2.76 in)
- Motor Flange Size
- 205 mm (8.07 in)
- Mounting Holes Diameter
- 14 mm (0.55 in)
- Centring Collar Diameter
- 180 mm (7.09 in)
- Net Weight
- 71.9 kg (158.51 lb)
- Cooling Type
- Natural convection
- Mounting Support
- International standard flange
- Speed Feedback Resolution
- 32768 points/turn x 4096 turns
- Number of Motor Stacks
- 3
- Back Emf Constant
- 218 V/krpm at 120 B0C
- Stator Resistance
- 0.32 Ohm at 20 B0C
- Stator Electrical Time Constant
- 21.6 ms at 20 B0C
- Maximum Axial Force
- 0.2 x Maximum radial force
- RoHS Compliance
- Pro-active compliance
- PVC Free
- Yes
Nominal Output Power6500 W
Nominal Speed1200 rpm
Continuous Stall Current25.2 A
Maximum Permanent Current107.4 A
Holding Torque80 N.m holding brake
Brake Pull-In Power40 W
PhaseThree phase
Shaft Length80 mm (3.15 in)
Length538.5 mm (21.20 in)
Number of Mounting Holes4
Circle Diameter of Mounting Holes215 mm (8.46 in)
Centring Collar Depth4 mm (0.16 in)
MaterialNot specified
Electrical ConnectionRotatable right-angled connectors
Feedback TypeMultiturn SinCos Hiperface
Number of Motor Poles10
Torque Constant3.5 N.m/A at 120 B0C
Rotor Inertia206 kg.cmB2
Stator Inductance6.9 mH at 20 B0C
Maximum Radial Force4500 N @ 1000 rpm, 3570 N @ 2000 rpm, 3120 N @ 3000 rpm
IP Degree of ProtectionIP54
Mercury FreeYes
Country of OriginGermany
