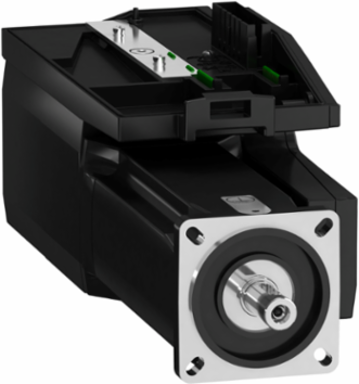

Schneider Electric BMI0703T16A Servo Motor IP54 Keyed Shaft 370W, 8000RPM, 3.5A, 14mm Diameter

This product is part of the Lexium 32i range, an offer of servo motors for integrated servo drive from 0.6kW to 2.2kW. The 10-pole servo motor features a medium moment of inertia with a maximum mechanical speed of 8000RPM and keyed shaft without holding brake. It is an equipped with a single-turn SinCos Hiperface® encoder (32,768 points/turn) for automatic transmission of data from the servo motor to the servo drive. It is a servo motor with a rated supply voltage of 115V to 230V, a continuous output current of 3.5A at 8kHz and maximum continuous power of 0.7kW. The shaft dimensions are 14mm (diameter) x 30mm (length). It is furnished with printed circuit board connector for electrical connection. It is an IP54 and IP65 rated product. Its dimensions are 300mm (length) x 70mm (width) and the centering collar dimensions are 2.5mm (depth) x 60mm (diameter) with 75mm to 82mm mounting hole. The Lexium 32i is the perfect drive for applications involving high-precision, dynamic positioning such as material handling, material working, packaging and printing. This product is certified by CE and UL. It meets UL 1004 standards. This product is compatible with drive control unit LXM32i CANopen and drive control unit LXM32i EtherCAT. It supports international standard 70mm flange mount with a natural convection cooling system. Lexium BMI servo motors are available in 2 flange sizes and 2 different lengths, a continuous torque range from 1.7Nm to 7.2Nm for speeds up to 4700RPM. Lexium 32i integrated servo drive from 0.6kW to 2.2kW is designed for application areas requiring high precision and advanced motor control.
