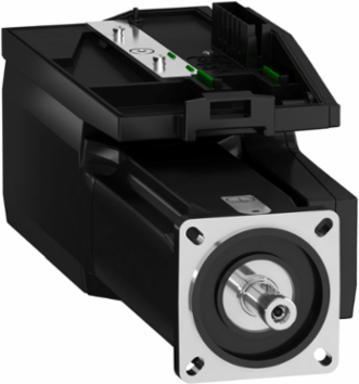

Schneider Electric BMI0702T07A Servo Motor 1-Phase, 2.6A Continuous Current, 268mm Length, IP54
- MPN: BMI0702T07A
- PPN: SCH-BMI0702T07A
CAD
$1976.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric BMI0702T07A Servo Motor is engineered to meet the demanding requirements of modern automation and motion control applications. With a continuous current rating of 2.6A and an IP54 protection class, this 1-phase servo motor provides effective performance while safeguarding against dust and moisture intrusion. Its length of 268mm facilitates installation in a range of environments, making it a versatile solution for various industrial tasks. This servo motor stands out for its reliability and efficiency, ensuring precise motion control in your automation projects.
Documentation & Downloads
Specifications
Additional
- Continuous Output Current
- 2.6 A 8 kHz
- Continuous Stall Torque
- 2.48 N.m single phase
- Nominal Torque
- 2.2 N.m 115 V single phase, 1.7 N.m 230 V single phase
- Maximum Mechanical Speed
- 8000 rpm
- Supply Frequency
- 50/60 Hz -5...5%
- Maximum Current Irms
- 17.7 A 115 V, 230 V single phase
- Torque Constant
- 0.63 N.m/A 20 °C
- Number Of Motor Poles
- 10
- Stator Resistance
- 2.7 Ohm 20 °C
- Stator Electrical Time Constant
- 2.89 ms 20 °C
- Maximum Axial Force
- 0.2 x Radial Force
- Type Of Cooling
- Natural convection
- Shaft Diameter
- 11 mm
- Motor Flange Size
- 70 mm
- Mounting Support
- International standard flange
- Mounting Holes Diameter
- 5.5 mm
- Distance Shaft Shoulder-Flange
- 2.5 mm
- Centring Collar Depth
- 2.5 mm
- Feedback Type
- Absolute multiturn SinCos Hiperface
- RoHS Compliance
- Yes
- Country Of Origin
- DE
- Range Compatibility
- Lexium 32i
- Warranty
- 18 months
Peak Stall Torque6.6 N.m single phase
Nominal Output Power700 W 230 V single phase, 400 W 115 V single phase
Nominal Speed4000 rpm 230 V single phase, 1700 rpm 115 V single phase
Supply Voltage Limits100-240 V
Network Frequency Limits47.5-63 Hz
Output Current Peak10.5 A 230 V 1 s
Back Emf Constant42.1 V/krpm 20 °C
Rotor Inertia1.13 kg.cm²
Stator Inductance7.8 mH 20 °C
Maximum Radial Force710 N 1000 rpm
PhaseSingle phase
Length268 mm
Shaft Length23 mm
Number Of Motor Stacks2
Number Of Mounting Holes4
Circle Diameter Of The Mounting Holes75-82 mm
Centring Collar Diameter60 mm
Electrical ConnectionPrinted circuit board connector
IP Degree Of ProtectionShaft IP54, Housing IP65
PVC FreeYes
Product Or Component TypeServo motor with power stage
Product CompatibilityDrive control unit LXM32i CANopen, LXM32i EtherCAT
