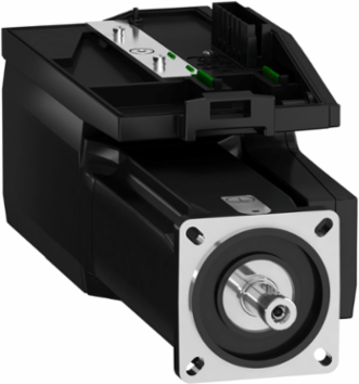

Schneider Electric BMI0702T27A Servo Motor 1-Phase, IP65, 70 mm Flange, 700W
- MPN: BMI0702T27A
- PPN: SCH-BMI0702T27A
CAD
$2025.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Engineered for precision and reliability, the Schneider Electric BMI0702T27A servo motor is designed for a variety of automation and motion control applications. Featuring a robust 70 mm flange and a power output of 700W, this 1-phase motor excels in environments where durability is essential, thanks to its IP65 rating that offers protection against dust and water ingress. Whether you are integrating motion control in industrial machinery or developing sophisticated robotic systems, this servo motor provides the performance and dependability needed to enhance your operational efficiency.
Documentation & Downloads
Specifications
Additional
- Voltage
- 115...230 V
- Phase
- Single phase
- Peak Output Current
- 10.5 A 230 V 1 s
- Continuous Stall Torque
- 2.48 N.m 115...230 V single phase
- Nominal Output Power
- 700 W 230 V single phase, 400 W 115 V single phase
- Nominal Speed
- 4000 rpm 230 V single phase, 1700 rpm 115 V single phase
- Maximum Current Irms
- 17.7 A 230 V, single phase
- Back EMF Constant
- 42.1 V/krpm 20 °C
- Stator Resistance
- 2.7 Ohm 20 °C
- Stator Electrical Time Constant
- 2.89 ms 20 °C
- Cooling Type
- Natural convection
- Shaft Length
- 23 mm (0.91 in)
- Motor Flange Size
- 70 mm (2.76 in)
- Number of Motor Stacks
- 2
- Centering Collar Depth
- 2.5 mm (0.10 in)
- Mounting Holes Diameter
- 5.5 mm (0.22 in)
- Distance Shaft Shoulder-Flange
- 2.5 mm (0.10 in)
- Feedback Type
- Absolute multiturn SinCos Hiperface
- IP Degree of Protection
- IP65
- Mercury Free
- Yes
- RoHS Compliant
- Yes (including exemption info)
- Product Type
- Servo motor with power stage
- Warranty
- 18 months
Frequency50/60 Hz, 47.5-63 Hz
Continuous Output Current2.6 A 8 kHz
Continuous Stall Current2.6 A
Peak Stall Torque6.6 N.m 115 V / 230 V single phase
Nominal Torque2.2 N.m 115 V single phase, 1.7 N.m 230 V single phase
Maximum Mechanical Speed8000 rpm
Torque Constant0.63 N.m/A 20 °C
Number of Motor Poles10
Stator Inductance7.8 mH 20 °C
Rotor Inertia1.13 kg.cm²
Shaft Diameter11 mm (0.43 in)
Shaft EndUntapped
Length268 mm (10.55 in)
Centering Collar Diameter60 mm (2.36 in)
Number of Mounting Holes4
Circle Diameter of Mounting Holes75-82 mm (2.95-3.23 in)
Electrical ConnectionPrinted circuit board connector
Speed Feedback Resolution32768 points/turn x 4096 turns
Emc FilterIntegrated
PVC FreeYes
ComplianceRoHS, Mercury free, PVC free, Prop 65 warning
Product CompatibilityDrive control unit LXM32i CANopen, Drive control unit LXM32i EtherCAT
