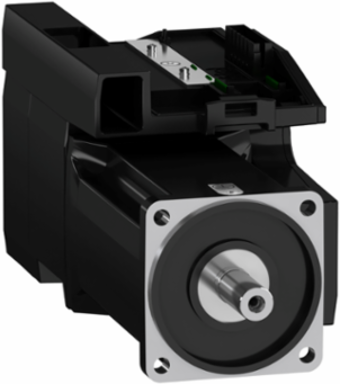

Schneider Electric BMI1002T06A Servo Motor 1-Phase 750W, 32768 p/t, IP54, 6000 RPM
- MPN: BMI1002T06A
- PPN: SCH-BMI1002T06A
CAD
$2490.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric BMI1002T06A Servo Motor stands out in the realm of automation and control with its robust performance tailored for precise motion. Featuring a powerful 750W output and capable of reaching speeds up to 6000 RPM, this 1-phase motor delivers exceptional responsiveness and efficiency for various applications. With an impressive resolution of 32768 pulses per turn, it ensures accurate positioning, making it ideal for sophisticated motion control tasks. Additionally, its IP54 rating offers protection against dust and water, enhancing its reliability in demanding environments. This servo motor is designed to meet the needs of modern automation systems, providing durability and precision for seamless operation.
Documentation & Downloads
Specifications
Additional
- Nominal Speed
- 1400 rpm (115 V single phase), 3000 rpm (230 V single phase)
- Continuous Output Current
- 6 A 8 kHz
- Maximum Mechanical Speed
- 6000 rpm
- Peak Stall Torque
- 14.5 N.m (115 V single phase), 14.5 N.m (230 V single phase)
- Maximum Radial Force Fr
- 990 N (1000 rpm), 790 N (2000 rpm), 690 N (3000 rpm), 620 N (4000 rpm), 580 N (5000 rpm)
- Power
- 750 W
- Supply Frequency
- 50/60 Hz (-5...5 %)
- Maximum Current Irms
- 30 A (115 V, single phase), 30 A (230 V, single phase)
- Shaft Diameter
- 19 mm (0.75 in)
- Motor Flange Size
- 100 mm (3.94 in)
- Mounting Holes Diameter
- 9 mm (0.35 in)
- Distance Shaft Shoulder-Flange
- 3.5 mm
- Centring Collar Depth
- 3.5 mm
- Number Of Motor Stacks
- 2
- Material
- PVC Free, Mercury Free
- Compliance
- RoHS, REACh, Prop 65 Compliant
Nominal Torque5.4 N.m (115 V single phase), 4.4 N.m (230 V single phase)
Peak Output Current18 A (3 s)
Continuous Stall Torque6 N.m (115...230 V single phase)
Maximum Axial Force Fa0.2 x Fr
Nominal Output Power750 W (115 V single phase), 1300 W (230 V single phase)
Voltage115...230 V -15...10 %
PhaseSingle phase
Length273 mm (10.75 in)
Shaft Length40 mm (1.57 in)
Number Of Mounting Holes4
Circle Diameter Of The Mounting Holes115 mm (4.53 in)
Centring Collar Diameter95 mm
Number Of Motor Poles10
Rotor Inertia6.28 kg.cm²
Ip Degree Of Protectionshaft IP54, housing IP65
