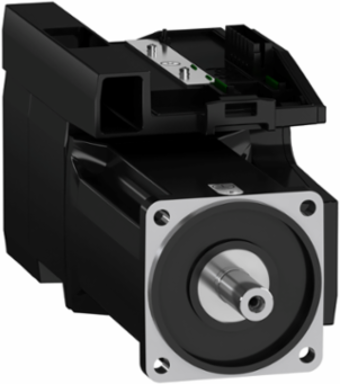

Schneider Electric BMI1002P27A 3-Phase Servo Motor IP65 Multiturn 1000 W 32768 p/t x 4096 t
- MPN: BMI1002P27A
- PPN: SCH-BMI1002P27A
CAD
$2915.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric BMI1002P27A is a robust 3-phase servo motor designed for high-performance automation applications. With an impressive power output of 1000 W, this multiturn motor features a resolution of 32768 pulses per turn and 4096 turns, ensuring precise control and exceptional accuracy in motion control tasks. Its IP65 rating offers reliable protection against dust and water, making it suitable for demanding industrial environments. This servo motor stands out for its durability and efficiency, serving as an essential component for modern automation and motion control systems.
Documentation & Downloads
Specifications
Additional
- Nominal Output Power
- 1000 W 208 V three phase, 1900 W 400 V three phase, 1900 W 480 V three phase
- Supply Frequency
- 50/60 Hz -5...5 %
- Maximum Mechanical Speed
- 6000 rpm
- Nominal Torque
- 5.4 N.m 208 V three phase, 5.1 N.m 400 V three phase, 4.1 N.m 480 V three phase
- Continuous Stall Torque
- 6 N.m 208...480 V three phase
- Output Current 3S Peak
- 12 A 400 V 3 s
- Torque Constant
- 1.28 N.m/A 20 °C
- Shaft Diameter
- 19 mm
- Mounting Holes Diameter
- 9 mm
- Circle Diameter Of The Mounting Holes
- 115 mm
- Centring Collar Depth
- 3.5 mm
- Length
- 273 mm
- Type Of Cooling
- natural convection
- Speed Feedback Resolution
- 32768 points/turn x 4096 turns
- Rotor Inertia
- 6.28 kg.cm²
- Stator Inductance
- 9.79 mH 20 °C
- Emc Filter
- integrated
- Product Type
- servo motor with power stage
- Product Compatibility
- drive control unit LXM32i CANopen, drive control unit LXM32i EtherCAT
- Second Shaft
- without second shaft end
- Maximum Axial Force Fa
- 0.2 x Fr
- Rohs Exemption Information
- Yes
- IP Degree Of Protection
- IP65
- Mercury Free
- Yes
- Reach Regulation
- Substances of Very High Concern above threshold
- Circularity Profile
- ENVEOLI1312017EN
- Warranty
- 18 months
Supply Voltage208...480 V -15...10 %
Network Number Of Phasesthree phase
Nominal Speed1900 rpm 208 V three phase, 3800 rpm 400 V three phase, 4700 rpm 480 V three phase
Peak Stall Torque14 N.m 208 V three phase, 14 N.m 400 V three phase, 14 N.m 480 V three phase
Continuous Output Current4 A 8 kHz
Maximum Current Irms17.5 A 208 V, 400 V, 480 V three phase
Back Emf Constant84.52 V/krpm 20 °C
Shaft Length40 mm
Number Of Mounting Holes4
Centring Collar Diameter95 mm
Motor Flange Size100 mm
Mounting Supportinternational standard flange
Feedback Typeabsolute multiturn SinCos Hiperface
Number Of Motor Poles10
Stator Resistance2.347 Ohm 20 °C
Stator Electrical Time Constant4.17 ms 20 °C
Electrical Connectionprinted circuit board connector
Device Short NameBMI
Range CompatibilityLexium 32i
Shaft Enduntapped
Maximum Radial Force Fr990 N 1000 rpm, 790 N 2000 rpm, 690 N 3000 rpm, 620 N 4000 rpm, 580 N 5000 rpm
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Pvc FreeYes
Environmental ComplianceRoHS, Mercury free, PVC free, REACh Declaration
Environmental DisclosureENVPEP1312017EN
Country of OriginGermany
