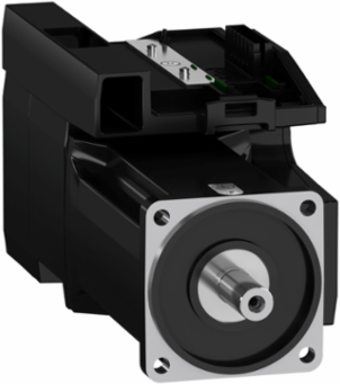

Schneider Electric BMI1002P32A Servo Motor IP65 Multiturn 1000W 1900RPM 3-Phase
- MPN: BMI1002P32A
- PPN: SCH-BMI1002P32A
CAD
$3123.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Engineered for precision in motion control applications, the Schneider Electric BMI1002P32A servo motor is a robust solution for those seeking reliability and performance in demanding environments. With a power output of 1000W and a maximum speed of 1900 RPM, this three-phase motor excels in multiturn operations, making it ideal for automation and control tasks. Its IP65 rating ensures that it is protected against dust and water ingress, allowing it to thrive in challenging industrial conditions. This servo motor combines durability and efficiency, making it an essential component for modern automated systems.
Documentation & Downloads
Specifications
Additional
- Nominal Output Power
- 1000 W 208 V three phase || 1900 W 400 V three phase || 1900 W 480 V three phase
- Continuous Stall Torque
- 6 N.m 208...480 V three phase
- Continuous Output Current
- 4 A 8 kHz
- Voltage
- 208...480 V - 15...10 %
- Phase
- three phase
- Nominal Torque
- 5.1 N.m 400 V three phase || 5.4 N.m 208 V three phase || 4.1 N.m 480 V three phase
- Shaft Diameter
- 19 mm (0.75 in)
- Key Width
- 6 mm (0.24 in)
- Centring Collar Depth
- 3.5 mm (0.14 in)
- Mounting Holes Diameter
- 9 mm (0.35 in)
- Distance Shaft Shoulder-Flange
- 3.5 mm (0.14 in)
- Number Of Motor Poles
- 10
- Rotor Inertia
- 6.28 kg.cm²
- Stator Inductance
- 9.79 mH 20 °C
- Torque Constant
- 1.28 N.m/A 20 °C
- Feedback Type
- Absolute multiturn SinCos Hiperface
- Mounting Support
- International standard flange
- Phase
- three phase
- Warranty
- 18 months
- Mercury Free
- Yes
Nominal Speed1900 rpm 208 V three phase || 3800 rpm 400 V three phase || 4700 rpm 480 V three phase
Peak Stall Torque14 N.m 208 V three phase || 14 N.m 400 V three phase || 14 N.m 480 V three phase
Output Current 3S Peak12 A 400 V 3 s
Supply Frequency50/60 Hz - 5...5 %
Maximum Mechanical Speed6000 rpm
Length273 mm (10.75 in.)
Shaft Length40 mm (1.57 in)
Centring Collar Diameter95 mm (3.74 in)
Number Of Mounting Holes4
Circle Diameter Of The Mounting Holes115 mm (4.53 in)
Motor Flange Size100 mm (3.94 in)
Number Of Motor Stacks2
Stator Resistance2.347 Ohm 20 °C
Stator Electrical Time Constant4.17 ms 20 °C
Back Emf Constant84.52 V/krpm 20 °C
Electrical ConnectionPrinted circuit board connector
IP Degree Of ProtectionIP65
Country of OriginGermany
Sustainable Offer StatusGreen Premium product
PVC FreeYes
