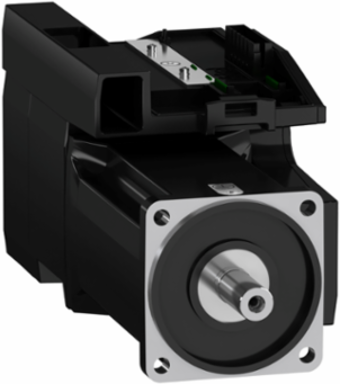

Schneider Electric BMI1003P37A Servo Motor 3-Phase 1000 W, IP65, 32768 p/t x 4096 t
- MPN: BMI1003P37A
- PPN: SCH-BMI1003P37A
CAD
$3439.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Engineered for high-performance applications, this servo motor from Schneider Electric stands out with its robust 1000 W three-phase design, ideal for precision motion control in various automation tasks. With an impressive resolution of 32,768 pulses and 4,096 turns, it delivers exceptional accuracy and responsiveness, critical for intricate and demanding environments. Additionally, its IP65 rating ensures resilience against dust and moisture, making it suitable for use in challenging industrial settings. This servo motor is an essential component for enhancing efficiency and control in motion applications, aligning perfectly with the needs of modern automation systems.
Documentation & Downloads
Specifications
Additional
- Nominal Output Power
- 1000 W 208 V three phase || 2000 W 400 V three phase || 2100 W 480 V three phase
- Continuous Stall Torque
- 8.5 N.m 208...480 V three phase
- Nominal Speed
- 1500 rpm 208 V three phase || 3000 rpm 400 V three phase || 3700 rpm 480 V three phase
- Continuous Output Current
- 4 A 8 kHz
- Maximum Current Irms
- 26.7 A 208...480 V three phase
- Supply Frequency
- 50/60 Hz - 5...5 %
- Torque Constant
- 1.7 N.m/A 20 C
- Rotor Inertia
- 9.37 kg.cmB2
- Stator Inductance
- 11.43 mH 20 C
- Length
- 299 mm
- Centring Collar Diameter
- 95 mm
- Number Of Mounting Holes
- 4
- Circle Diameter Of The Mounting Holes
- 115 mm
- Shaft Diameter
- 19 mm
- Key Width
- 6 mm
- Holding Brake
- without
- IP Rating
- IP65
- Country of Origin
- DE
Peak Stall Torque19.2 N.m 208...480 V three phase
Nominal Torque7.2 N.m 208 V three phase || 6.8 N.m 400 V three phase || 5.6 N.m 480 V three phase
Maximum Mechanical Speed6000 rpm
Output Current Peak12 A 400 V 3 s
Rated Supply Voltage208...480 V - 15...10 %
Number Of Motor Poles10
Back Emf Constant112 V/krpm 20 C
Stator Resistance2.31 Ohm 20 C
Feedback Typeabsolute multiturn SinCos Hiperface
Motor Flange Size100 mm
Centring Collar Depth3.5 mm
Mounting Holes Diameter9 mm
Distance Shaft Shoulder-Flange3.5 mm
Shaft Length40 mm
Shaft Endkeyed
Type Of Coolingnatural convection
ComplianceRoHS, Mercury free, PVC free, Pro-active EU RoHS compliant, SVHC above threshold
