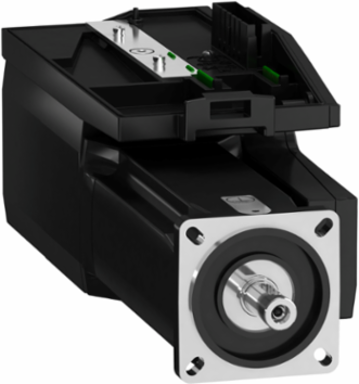

Schneider Electric BMI0703P07A Servo Motor 3-Phase 70 mm Flange, 900 W, 2.9 N.m Torque, IP54
- MPN: BMI0703P07A
- PPN: SCH-BMI0703P07A
CAD
$2470.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric BMI0703P07A Servo Motor stands out in the field of automation and control, delivering exceptional performance with its robust 900 W power output and a maximum torque of 2.9 N.m. Engineered with a 3-phase 70 mm flange design, this motor is suitable for various motion control applications, combining efficiency with reliability. Designed to withstand challenging environments, it features an IP54 rating, ensuring protection against dust and water splashes, making it an excellent choice for your industrial automation needs. With its sophisticated engineering, this servo motor is poised to enhance the precision and effectiveness of your systems.
Documentation & Downloads
Specifications
Additional
- Power
- 900 W 208-480 V three phase
- Peak Stall Torque
- 8.6 N.m
- Nominal Speed
- 1600 to 3900 rpm (varies with voltage)
- Supply Voltage Limits
- 208-480 V -15...10%
- Supply Frequency
- 50/60 Hz -5...5%
- Peak Output Current 3s
- 6 A 400 V 3 s
- Torque Constant
- 1.41 N.m/A 20 °C
- Number Of Motor Poles
- 10
- Stator Resistance
- 7.99 Ohm 20 °C
- Stator Electrical Time Constant
- 3.2 ms 20 °C
- Length
- 300 mm (11.81 in)
- Shaft Length
- 30 mm (1.18 in)
- Number Of Mounting Holes
- 4
- Distance Shaft Shoulder-Flange
- 2.5 mm
- Centring Collar Diameter
- 60 mm
- Type Of Cooling
- natural convection
- Network Frequency Limits
- 47.5-63 Hz
- Product Compatibility
- drive control unit LXM32i CANopen, drive control unit LXM32i EtherCAT
- Holding Brake
- without
- Emc Filter
- integrated
- Sustainable Offer Status
- Green Premium product
- Pvc Free
- Yes
- RoHS Compliance
- RoHS, Mercury free, PVC free
- Weee
- EU market compliant disposal
- Rohs Exemption Information
- Yes
- Country of Origin
- Germany
Torque2.3 to 2.9 N.m (varies with voltage)
Continuous Stall Torque3.4 N.m 208-480 V three phase
Maximum Mechanical Speed8000 rpm
Network Number Of Phasesthree phase
Continuous Output Current2 A 8 kHz
Maximum Current Irms12.5 A 208-480 V three phase
Back Emf Constant95.39 V/krpm 20 °C
Rotor Inertia1.67 kg.cm²
Stator Inductance25.6 mH 20 °C
Motor Flange Size70 mm
Shaft Diameter14 mm (0.55 in)
Mounting Holes Diameter5.5 mm
Circle Diameter Of The Mounting Holes75-82 mm
Centring Collar Depth2.5 mm
Ip Degree Of Protectionshaft IP54, housing IP65
Electrical Connectionprinted circuit board connector
Range CompatibilityLexium 32i
Product Or Component Typeservo motor with power stage
Device Short NameBMI
Second Shaftwithout second shaft end
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP1312017EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach RegulationContains SVHCs above threshold
