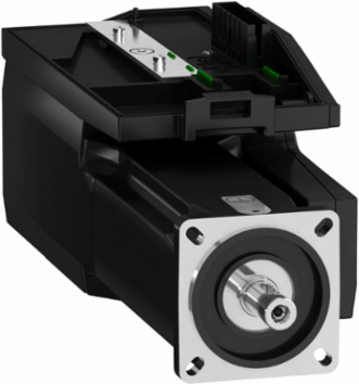

Schneider Electric BMI0703P06A Servo Motor 3-Phase 32768 p/t IP54 70 mm Flange 900 W
- MPN: BMI0703P06A
- PPN: SCH-BMI0703P06A
CAD
$2194.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Engineered for outstanding performance within automation and control systems, this servo motor from Schneider Electric is designed to meet the rigorous demands of modern motion control applications. With a robust 900 W output and a 70 mm flange, it provides precise and responsive operation, ensuring efficient performance across a variety of tasks. The motor's three-phase design and impressive resolution of 32,768 pulses per rotation deliver exceptional accuracy and reliability, making it an essential component for any advanced machinery. Additionally, its IP54 rating offers protection against dust and splashes, ensuring longevity and consistent operation in challenging environments.
Documentation & Downloads
Specifications
Additional
- Rated Supply Voltage
- 208-480 V -15...10 %
- Network Frequency Limits
- 47.5-63 Hz
- Continuous Output Current
- 2 A 8 kHz
- Continuous Stall Current
- 2 A
- Peak Stall Torque
- 8.6 N.m 208 V three phase
- Nominal Torque
- 2.9 N.m 208 V three phase
- Maximum Current Irms
- 12.5 A 400 V, three phase || 12.5 A 480 V, three phase || 12.5 A 208 V, three phase
- Shaft Diameter
- 14 mm
- Feedback Type
- absolute single turn SinCos Hiperface
- Mounting Support
- international standard flange
- IP Degree of Protection
- shaft IP54 || housing IP65
- Torque Constant
- 1.41 N.m/A 20 b0C
- Number of Motor Poles
- 10
- Stator Resistance
- 7.99 Ohm 20 b0C
- Stator Electrical Time Constant
- 3.2 ms 20 b0C
- Maximum Axial Force
- 0.2 x Radial Force
- Circle Diameter of the Mounting Holes
- 75-82 mm
- Centring Collar Diameter
- 60 mm
- Second Shaft
- without second shaft end
- Pvc Free
- Yes
- Product Compatibility
- drive control unit LXM32i CANopen || drive control unit LXM32i EtherCAT
- Warranty
- 18 months
- Circularity Profile
- ENVEOLI1312017EN
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Holding Brake
- without
- Supply Voltage Limits
- 208-480 V
- Mercury Free
- Yes
Supply Frequency50/60 Hz -5...5 %
Maximum Mechanical Speed8000 rpm
Peak Output Current6 A 400 V 3 s
Continuous Stall Torque3.4 N.m 208...480 V three phase
Nominal Output Power900 W 400 V three phase
Nominal Speed3300 rpm 400 V three phase
Shaft Enduntapped
Shaft Length30 mm
Speed Feedback Resolution32768 points/turn
Motor Flange Size70 mm
Electrical Connectionprinted circuit board connector
Back EMF Constant95.39 V/krpm 20 b0C
Rotor Inertia1.67 kg.cmb2
Stator Inductance25.6 mH 20 b0C
Maximum Radial Force730 N 1000 rpm
Type of Coolingnatural convection
Number Of Motor Stacks3
Distance Shaft Shoulder-Flange2.5 mm
Device Short NameBMI
Reach RegulationContains Substances of Very High Concern
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product outside EU RoHS scope)
Centring Collar Depth2.5 mm
WeeeMust be disposed via EU waste collection
Range CompatibilityLexium 32i
Mounting Holes Diameter5.5 mm
Number Of Mounting Holes4
Environmental DisclosureENVPEP1312017EN
