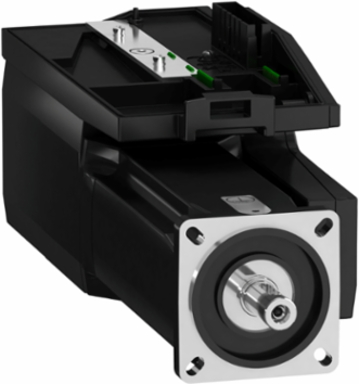

Schneider Electric BMI0702P27A Servo Motor 3-Phase IP65 400W 1800-8000 RPM 11 mm Shaft
- MPN: BMI0702P27A
- PPN: SCH-BMI0702P27A
CAD
$2223.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This 3-phase servo motor from Schneider Electric is engineered for high performance in automation and motion control applications. With a robust IP65 rating, it ensures reliable operation in challenging environments, protecting against dust and moisture. Operating at speeds ranging from 1800 to 8000 RPM, this 400W motor provides exceptional precision and responsiveness, making it ideal for various demanding tasks. The 11 mm shaft design facilitates easy integration into your existing systems, ensuring seamless functionality in your automated processes.
Documentation & Downloads
Specifications
Additional
- Supply Voltage
- 208-480 V -15...10 %
- Nominal Output Power
- 400 W 208 V three phase || 800 W 400 V three phase || 900 W 480 V three phase
- Nominal Speed
- 1800 rpm 208 V three phase || 3600 rpm 400 V three phase || 4400 rpm 480 V three phase
- Peak Stall Torque
- 6.8 N.m 208 V three phase || 6.8 N.m 400 V three phase || 6.8 N.m 480 V three phase
- Continuous Output Current
- 2 A 8 kHz
- Maximum Current Irms
- 9.6 A 208 V three phase || 9.6 A 400 V three phase || 9.6 A 480 V three phase
- Back Emf Constant
- 77.18 V/krpm 20 0C
- Stator Inductance
- 25.75 mH 20 0C
- Maximum Radial Force
- 710 N 1000 rpm || 560 N 2000 rpm || 490 N 3000 rpm || 450 N 4000 rpm || 410 N 5000 rpm || 390 N 6000 rpm
- Number Of Motor Poles
- 10
- Mounting Holes Diameter
- 5.5 mm
- Length
- 268 mm
- Shaft Length
- 23 mm
- Centring Collar Depth
- 2.5 mm
- Centring Collar Diameter
- 60 mm
- Feedback Type
- absolute multiturn SinCos Hiperface
- Mounting Support
- international standard flange
- IP Rating
- IP65
- China RoHS Regulation
- X
- Reach Regulation
- Contains SVHC above threshold
- Warranty
- 18 months
- Device Short Name
- BMI
- Range Compatibility
- Lexium 32i
- Number Of Motor Stacks
- 2
Supply Frequency50/60 Hz -5...5 %
Nominal Torque2.4 N.m 208 V three phase || 2.2 N.m 400 V three phase || 2 N.m 480 V three phase
Continuous Stall Torque2.48 N.m 208...480 V three phase
Maximum Mechanical Speed8000 rpm
Peak Output Current6 A 400 V 3 s
Torque Constant1.15 N.m/A 20 0C
Stator Resistance8.89 Ohm 20 0C
Rotor Inertia1.13 kg.cm
Maximum Axial Force0.2 x Radial Force
Number Of Mounting Holes4
Circle Diameter Of Mounting Holes75-82 mm
Shaft Diameter11 mm
Distance Shaft Shoulder-Flange2.5 mm
Motor Flange Size70 mm
MaterialNot specified
Electrical Connectionprinted circuit board connector
Type Of Coolingnatural convection
Environmental ComplianceRoHS, Mercury Free, PVC Free
EU RoHS DirectivePro-active compliance (out of EU RoHS scope)
WEEEMust be disposed per EU waste collection
Country of OriginGermany (DE)
Product Typeservo motor with power stage
Product Compatibilitydrive control unit LXM32i CANopen || drive control unit LXM32i EtherCAT
Sustainable Offer StatusGreen Premium product
