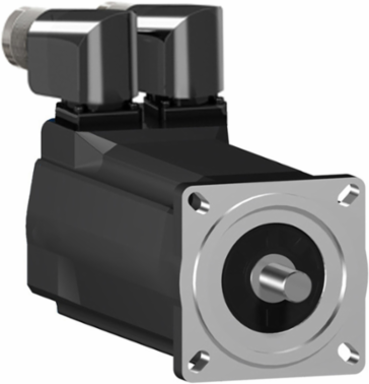

Schneider Electric SH30701P11A2000 Servo Motor 1.25 Nm, 8000 RPM, IP54/IP65, 3-Phase, 2.1 kg
Schneider Electric SH30701P11A2000 Servo Motor 1.25 Nm, 8000 RPM, IP54/IP65, 3-Phase, 2.1 kg
- MPN: SH30701P11A2000
- PPN: SCH-SH30701P11A2000
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2639.38/ EA
Description
Engineered for precision and efficiency, this Servo Motor from Schneider Electric delivers a substantial torque of 1.25 Nm at a remarkable speed of 8000 RPM. With its robust design rated for IP54/IP65 protection, it is well-suited for demanding environments, ensuring reliable performance against dust and moisture. Ideal for applications within automation and motion control, the 3-phase motor is a versatile choice for enhancing operational capabilities in various industrial settings. Weighing just 2.1 kg, it combines power with a compact build, making it an excellent addition to your automation solutions.
Specifications
- Rated Supply Voltage
- 115...480 V
- Nominal Torque
- 1.4 N.m (115 V and 230 V single phase), 1.1 N.m (400 V and 480 V three phase)
- Continuous Power
- 690 W
- Nominal Speed
- 1500 rpm (115 V single phase), 3000 rpm (230 V single phase), 6000 rpm (400 V three phase), 7200 rpm (480 V three phase)
- Maximum Current Irms
- 5.7 A
- Back Emf Constant
- 46 V/krpm 20 °C
- Maximum Radial Force
- 660 N (1000 rpm), 520 N (2000 rpm), 460 N (3000 rpm), 410 N (4000 rpm), 380 N (5000 rpm), 360 N (6000 rpm)
- Length
- 154 mm (6.06 in)
- Shaft Diameter
- 11 mm (0.43 in)
- Key Width
- 4 mm (0.16 in)
- Centring Collar Diameter
- 60 mm (2.36 in)
- Number of Mounting Holes
- 4
- Circle Diameter of Mounting Holes
- 82 mm (3.23 in)
- Mounting Support
- international standard flange
- Type of Cooling
- natural convection
- Material
- PVC free, mercury free
- RoHS Compliance
- Yes (EU RoHS directive proactive compliance)
- REACH Regulation
- Contains SVHC above threshold
- Warranty
- 18 months
- Range Compatibility
- PacDrive 3
Peak Stall Torque3.5 N.m
Continuous Stall Torque1.25 N.m
Maximum Mechanical Speed8000 rpm
Continuous Stall Current1.8 A
Torque Constant0.69 N.m/A 120 °C
Number of Motor Poles3
Maximum Axial Force80 N
Weight2.1 kg
Shaft Length23 mm (0.91 in)
Motor Flange Size70 mm (2.76 in)
Centring Collar Depth2.5 mm (0.10 in)
Mounting Holes Diameter5.5 mm (0.22 in)
Shaft Endparallel key
Electrical Connectionstraight connector
IP Degree of ProtectionIP54 shaft bushing without shaft seal ring; IP65 motor and shaft bushing; conforming to EN/IEC 60034-5
Environmental DisclosureENVPEP111049EN
China RoHS RegulationX
WEEEMust be disposed according to EU waste collection
Product Typeservo motor
