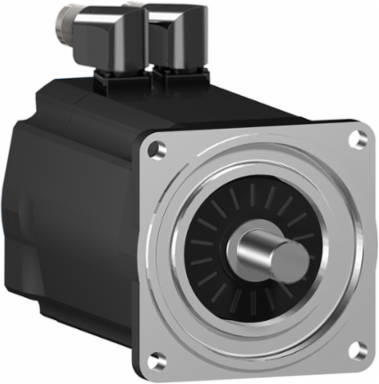

Schneider Electric SH31004P01A2000 Servo Motor 10 Nm, 6000 RPM, IP54/IP65, 9.2 kg
- MPN: SH31004P01A2000
- PPN: SCH-SH31004P01A2000
CAD
$4590.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric SH31004P01A2000 Servo Motor is engineered to deliver powerful performance and versatility within automation and control applications. With a robust torque output of 10 Nm and an impressive speed of 6000 RPM, this motor is designed to efficiently handle a wide range of motion control tasks. Its IP54/IP65 rating ensures reliability in various environmental conditions, making it suitable for both industrial and demanding settings. Weighing 9.2 kg, this servo motor combines strength and efficiency, providing an essential component for your motion control systems.
Documentation & Downloads
Specifications
Additional
- Continuous Stall Torque
- 10 N.m 115...480 V three phase
- Continuous Stall Current
- 6.2 A
- Nominal Output Power
- 780 W 115 V single phase, 1490 W 230 V single phase, 2480 W 400 V three phase, 2600 W 480 V three phase
- Nominal Speed
- 750 rpm 115 V single phase, 1500 rpm 230 V single phase, 3000 rpm 400 V three phase, 3600 rpm 480 V three phase
- Maximum Current Irms
- 32.3 A
- Back Emf Constant
- 103 V/krpm 20 °C
- Maximum Radial Force
- 1070 N at 1000 rpm, 850 N at 2000 rpm, 740 N at 3000 rpm
- Shaft Diameter
- 24 mm
- Length
- 276.5 mm
- Centring Collar Diameter
- 95 mm
- Number Of Mounting Holes
- 4
- Circle Diameter Of The Mounting Holes
- 115 mm
- Electrical Connection
- straight connector
- Holding Brake
- without
- Net Weight
- 9.2 kg
- Compliance
- RoHS, REACh, Mercury free, PVC free
- PVC Free
- Yes
Peak Stall Torque40.5 N.m 115...480 V three phase
Continuous Power2500 W
Nominal Torque9.9 N.m 115 V single phase, 9.5 N.m 230 V single phase, 7.9 N.m 400 V three phase, 6.9 N.m 480 V three phase
Maximum Mechanical Speed6000 rpm
Torque Constant1.62 N.m/A 120 °C
Number Of Motor Poles4
Maximum Axial Force160 N
Shaft Length50 mm
Motor Flange Size100 mm
Centring Collar Depth3.5 mm
Mounting Holes Diameter9.0 mm
Mounting Supportinternational standard flange
Encoder Typeabsolute single turn SinCos Hiperface
Type Of Coolingnatural convection
Material
Mercury FreeYes
Country of OriginGermany
