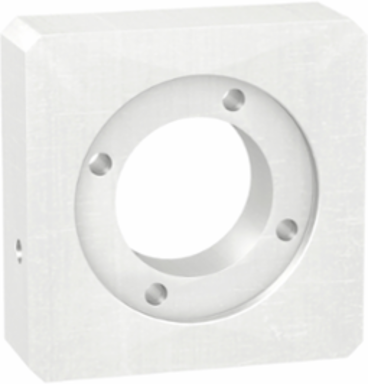

Schneider Electric GBK1201004F Lexium Adaptation Kit for Motor and Gearbox, 31.8 mm Length, 100 mm Flange Size

MPN: GBK1201004F
PPN: SCH-GBK1201004F

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$235.66/ EA

Qty:

Loading add to cart quantity...

Description

Schneider Electric's Lexium Adaptation Kit is an essential component designed to facilitate the integration of motors and gearboxes within motion control systems. With a length of 31.8 mm and a flange size of 100 mm, this kit ensures compatibility and robust performance, making it a reliable choice for various automation applications. Crafted with precision to support seamless operation, it helps optimize the functionality of servo motors, allowing for efficient and effective control throughout your automated processes.

Specifications

Product Type: adaptation kit

Range Compatibility: Lexium 62 ILM, Lexium 52, Lexium 32, Lexium 62

Length: 31.8 mm (1.25 in)

Gearbox External Diameter: 120 mm (4.72 in)

Net Weight: 0.65 kg (1.43 lb)

Sustainable Offer Status: Green Premium

PVC Free: Yes

Accessory / Separate Part Destination: for assembly motor and gearbox

Kit Composition: shaft end adaptor, screws and bolts for mounting, adaptor plate

Accessory / Separate Part Category: adaptation accessory

Reach Regulation: Contains Substances of Very High Concern above threshold

China RoHS Regulation: Product out of China RoHS scope

Number of Motor Stacks4

Product CompatibilityMH3, ILM, BSH, BMH, SH3

Motor Flange Size100 mm (3.94 in)

Mounting Screw SizeM8

Warranty18 months

Mercury FreeYes

EU RoHS CompliancePro-active compliance (Product out of EU RoHS legal scope)

Device Short NameGBK

Circularity ProfileN/A

Rohs Exemption InformationYes

Environmental DisclosureENVPEP111245EN
