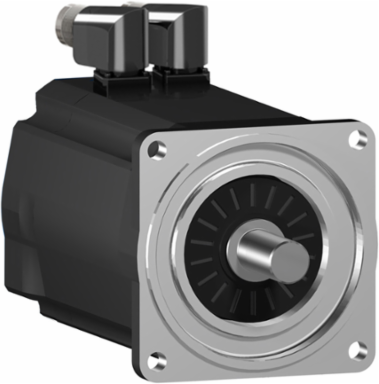

Schneider Electric SH31001P12A2100 Servo Motor 2.94 N.m, 6000 RPM, IP65, 4 Poles
- MPN: SH31001P12A2100
- PPN: SCH-SH31001P12A2100
CAD
$4238.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric SH31001P12A2100 Servo Motor is engineered to deliver exceptional performance in automation and control applications. With a torque output of 2.94 N.m and a remarkable speed of 6000 RPM, this motor is designed for precision and reliability, making it an ideal choice for various motion control tasks. Its robust IP65 rating ensures durability and protection against dust and moisture, allowing it to perform consistently in challenging environments. Built with four poles, this servo motor effectively meets the demands of modern automation systems, providing a reliable solution for your motion control needs.
Documentation & Downloads
Specifications
Additional
- Torque
- 2.94 N.m
- Continuous Stall Current
- 3.5 A
- Nominal Torque
- 2.91 N.m 115 V single phase, 2.64 N.m 230 V single phase, 2.27 N.m 400 V three phase, 2.27 N.m 480 V three phase
- Maximum Current Irms
- 12 A
- Continuous Power
- 1190 W
- Voltage
- 115...480 V three phase
- Number Of Poles
- 4
- Length
- 168.5 mm (6.63 in)
- Shaft Length
- 40 mm (1.57 in)
- Motor Flange Size
- 100 mm (3.94 in)
- Centring Collar Depth
- 3.5 mm (0.14 in)
- Mounting Holes Diameter
- 9.0 mm (0.35 in)
- Net Weight
- 4.3 kg (9.48 lb)
- Encoder Type
- Absolute multiturn SinCos Hiperface
- Torque Constant
- 0.84 N.m/A at 120 °C
- Rotor Inertia
- 1.4 kg.cm²
- Stator Inductance
- 27.15 mH
- Maximum Axial Force
- 160 N
- Mounting Support
- International standard flange
- Range Compatibility
- PacDrive 3
- Holding Brake
- Without
- Reach Regulation
- Contains SVHC above threshold
- Pvc Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Mercury Free
- Yes
- Device Short Name
- SH3.....P
- Country Of Origin
- DE
Maximum Speed6000 rpm
Continuous Stall Torque2.94 N.m 115...480 V three phase
Nominal Speed1250 rpm 115 V single phase, 2500 rpm 230 V single phase, 5000 rpm 400 V three phase, 6000 rpm 480 V three phase
Peak Stall Torque9.6 N.m 115...480 V three phase
Nominal Output Power410 W 115 V single phase, 790 W 230 V single phase, 1410 W 400 V three phase, 1630 W 480 V three phase
PhaseThree phase
IP RatingIP65 motor and shaft bushing (IEC 60034-5)
Shaft Diameter19 mm (0.75 in)
Key Width6 mm (0.24 in)
Centring Collar Diameter95 mm (3.74 in)
Number Of Mounting Holes4
Circle Diameter Of The Mounting Holes115 mm (4.53 in)
Shaft EndParallel key
Electrical ConnectionRotatable right angled connector
Back Emf Constant60 V/krpm at 20 °C
Stator Resistance3.8 Ohm
Maximum Radial Force900 N at 1000 rpm, decreasing to 530 N at 5000 rpm
Type Of CoolingNatural convection
Environmental DisclosureENVPEP111049EN
Product Or Component TypeServo motor
WeeeEU compliant waste disposal
China Rohs RegulationX
Rohs ComplianceYes
Rohs Exemption InformationYes
Eu Rohs DirectivePro-active compliance (Out of EU RoHS scope)
Warranty18 months
