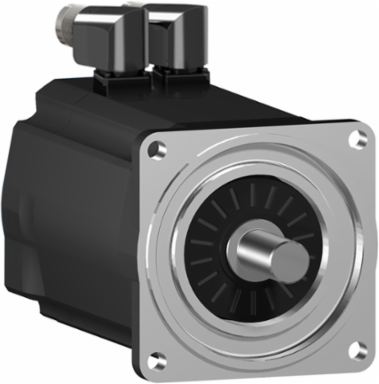

Schneider Electric SH31001P11A2100 Servo Motor 2.94 Nm, 6000 RPM, IP65, 4 Mounting Holes
- MPN: SH31001P11A2100
- PPN: SCH-SH31001P11A2100
CAD
$3373.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric SH31001P11A2100 Servo Motor is engineered for precision and reliability in automated control systems. This high-performance motor delivers a robust torque of 2.94 Nm and an impressive speed of 6000 RPM, making it an excellent choice for a variety of motion control applications. With an IP65 rating, it is designed to withstand dust and moisture, ensuring longevity in demanding environments. Additionally, the four mounting holes provide flexible installation options, allowing for seamless integration into your existing setups. This servo motor is a vital component for enhancing efficiency and performance in automation systems.
Documentation & Downloads
Specifications
Additional
- Peak Stall Torque
- 9.6 N.m 115...480 V three phase
- Nominal Output Power
- 410 W 115 V single phase || 790 W 230 V single phase || 1410 W 400 V three phase || 1630 W 480 V three phase
- Maximum Mechanical Speed
- 6000 rpm
- Rated Supply Voltage
- 115...480 V
- Continuous Stall Current
- 3.5 A
- Maximum Radial Force Fr
- 900 N 1000 rpm || 720 N 2000 rpm || 630 N 3000 rpm || 570 N 4000 rpm || 530 N 5000 rpm
- Torque Constant
- 0.84 N.m/A 120 0C
- Number Of Motor Poles
- 4
- Shaft Diameter
- 19 mm
- Key Width
- 6 mm
- Circle Diameter Of The Mounting Holes
- 115 mm
- Mounting Holes Diameter
- 9.0 mm
- Centring Collar Depth
- 3.5 mm
- Shaft End
- parallel key
- Speed Feedback Resolution
- 128 periods
- Stator Resistance
- 3.8 Ohm
- Type Of Cooling
- natural convection
- RoHS Compliance
- Pro-active compliance
Continuous Stall Torque2.94 N.m 115...480 V three phase
Continuous Power1190 W
Nominal Speed1250 rpm 115 V single phase || 2500 rpm 230 V single phase || 5000 rpm 400 V three phase || 6000 rpm 480 V three phase
Network Number Of Phasesthree phase
Maximum Current Irms12 A
Maximum Axial Force Fa160 N
Back Emf Constant60 V/krpm 20 0C
Length168.5 mm
Shaft Length40 mm
Mounting Supportinternational standard flange
Number Of Mounting Holes4
Centring Collar Diameter95 mm
Electrical Connectionrotatable right angled connector
Encoder Typeabsolute single turn SinCos Hiperface
Stator Inductance27.15 mH
Rotor Inertia1.4 kg.cmb2
IP Degree Of ProtectionIP65 motor: conforming to IEC 60034-5 || IP65 shaft bushing: conforming to IEC 60034-5
Country of OriginGermany (DE)
