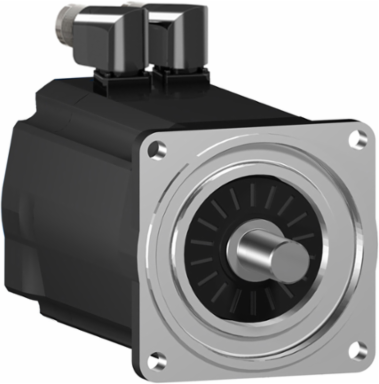

Schneider Electric SH31001P01A2100 Lexium 52 Servo Motor, 2.94 Nm Torque, 6000 RPM, IP65
Schneider Electric SH31001P01A2100 Lexium 52 Servo Motor, 2.94 Nm Torque, 6000 RPM, IP65
- MPN: SH31001P01A2100
- PPN: SCH-SH31001P01A2100
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$3302.00/ EA
Description
Engineered for precision and high-performance applications, Schneider Electric's Lexium 52 servo motor stands out with its impressive torque of 2.94 Nm and a maximum speed of 6000 RPM. This motor is designed to operate effectively in demanding environments, boasting an IP65 rating that ensures protection against dust and water ingress, making it ideal for various automation and control tasks. With its robust build and advanced motion control capabilities, this servo motor is a reliable choice for professionals seeking enhanced efficiency and accuracy in their projects.
Specifications
- Peak Stall Torque
- 9.6 N.m 115...480 V three phase
- Continuous Power
- 1190 W
- Nominal Torque
- 2.91 N.m 115 V single phase || 2.64 N.m 230 V single phase || 2.27 N.m 400 V three phase || 2.27 N.m 480 V three phase
- Maximum Mechanical Speed
- 6000 rpm
- Rated Supply Voltage
- 115...480 V
- Torque Constant
- 0.84 N.m/A 120 °C
- Number Of Motor Poles
- 4
- Stator Inductance
- 27.15 mH
- Maximum Axial Force
- 160 N
- Shaft Length
- 40 mm (1.57 in)
- Motor Flange Size
- 100 mm (3.94 in)
- Centring Collar Depth
- 3.5 mm (0.14 in)
- Mounting Holes Diameter
- 9.0 mm (0.35 in)
- Length
- 168.5 mm (6.63 in)
- Mounting Support
- international standard flange
- Encoder Type
- absolute single turn SinCos Hiperface
- Holding Brake
- without
- IP Rating
- IP65 motor and shaft bushing (EN/IEC 60034-5)
- Pvc Free
- Yes
- Compliance
- Pro-active EU RoHS, RoHS exempt, Mercury free, PVC free
- Weee
- EU waste disposal compliant
- Warranty
- 18 months
- Range Compatibility
- PacDrive 3
- Sustainable Offer Status
- Green Premium product
Continuous Stall Torque2.94 N.m 115...480 V three phase
Nominal Output Power410 W 115 V single phase || 790 W 230 V single phase || 1410 W 400 V three phase || 1630 W 480 V three phase
Nominal Speed1250 rpm 115 V single phase || 2500 rpm 230 V single phase || 5000 rpm 400 V three phase || 6000 rpm 480 V three phase
Maximum Current Irms12 A
Phasethree phase
Back Emf Constant60 V/krpm 20 °C
Stator Resistance3.8 Ohm
Maximum Radial Force900 N 1000 rpm || 720 N 2000 rpm || 630 N 3000 rpm || 570 N 4000 rpm || 530 N 5000 rpm
Shaft Diameter19 mm (0.75 in)
Shaft Endsmooth shaft
Centring Collar Diameter95 mm (3.74 in)
Number Of Mounting Holes4
Circle Diameter Of The Mounting Holes115 mm (4.53 in)
Net Weight4.3 kg (9.48 lb)
Electrical Connectionrotatable right angled connector
Speed Feedback Resolution128 periods
Cooling Typenatural convection
Eu Rohs DirectivePro-active compliance (out of EU RoHS legal scope)
Mercury FreeYes
China Rohs RegulationX
Environmental DisclosureENVPEP111049EN
Product Or Component Typeservo motor
Device Short NameSH3.....P
Reach RegulationContains SVHC above threshold
