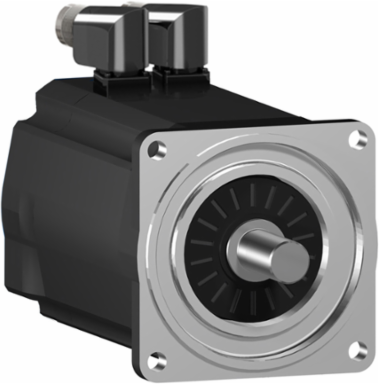

Schneider Electric SH31002P02A2100 Lexium 52 Servo Motor, 5.8 Nm Torque, 6000 RPM, IP65 Protection
- MPN: SH31002P02A2100
- PPN: SCH-SH31002P02A2100
CAD
$4665.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Lexium 52 Servo Motor from Schneider Electric stands out with its impressive 5.8 Nm of torque, making it a robust choice for a variety of applications in the realm of automation and control. Capable of achieving speeds of up to 6000 RPM, this motor delivers exceptional performance in motion control scenarios, ensuring precision and efficiency. Furthermore, with an IP65 protection rating, it is designed to withstand challenging environments, providing reliable operation in the face of dust and moisture. Ideal for industries that demand high performance and durability, this servo motor is engineered to help optimize operational processes and enhance productivity.
Documentation & Downloads
Specifications
Additional
- Maximum Mechanical Speed
- 6000 rpm
- Maximum Current Irms
- 17.1 A
- Continuous Power
- 1900 W
- Peak Stall Torque
- 18.3 N.m 115...480 V three phase
- Nominal Torque
- 5.5 N.m 115 V single phase || 5.2 N.m 230 V single phase || 4.6 N.m 400 V three phase || 4.4 N.m 480 V three phase
- Back Emf Constant
- 77 V/krpm 20 0C
- Maximum Radial Force Fr
- 990 N 1000 rpm || 790 N 2000 rpm || 690 N 3000 rpm || 620 N 4000 rpm
- Length
- 204.5 mm
- Shaft Length
- 40 mm
- Centring Collar Diameter
- 95 mm
- Number Of Mounting Holes
- 4
- Circle Diameter Of The Mounting Holes
- 115 mm
- Eu Rohs Directive
- Pro-active compliance
- Mercury Free
- Yes
- Rohs Exemption Information
- Yes
- Ip Degree Of Protection
- IP65 motor and shaft bushing, EN/IEC 60034-5
- Encoder Type
- Absolute multiturn SinCos Hiperface
- Stator Resistance
- 2.4 Ohm
- Rotor Inertia
- 2.31 kg.cm
- Mounting Support
- International standard flange
- Product Or Component Type
- Servo motor
- Range Compatibility
- PacDrive 3
Nominal Speed1000 rpm 115 V single phase || 2000 rpm 230 V single phase || 4000 rpm 400 V three phase || 4800 rpm 480 V three phase
Continuous Stall Current4.8 A
Nominal Output Power580 W 115 V single phase || 1090 W 230 V single phase || 1930 W 400 V three phase || 2210 W 480 V three phase
Continuous Stall Torque5.8 N.m 115...480 V three phase
Torque Constant1.21 N.m/A 120 0C
Number Of Motor Poles4
Maximum Axial Force Fa160 N
Shaft Diameter19 mm
Motor Flange Size100 mm
Centring Collar Depth3.5 mm
Mounting Holes Diameter9.0 mm
Environmental DisclosureENVPEP111049EN
China Rohs RegulationX
Pvc FreeYes
Reach RegulationContains SVHC above threshold
Type Of CoolingNatural convection
Speed Feedback Resolution128 periods
Stator Inductance19.5 mH
Electrical ConnectionRotatable right angled connector
Device Short NameSH3.....P
Holding BrakeWithout
Sustainable Offer StatusGreen Premium product
