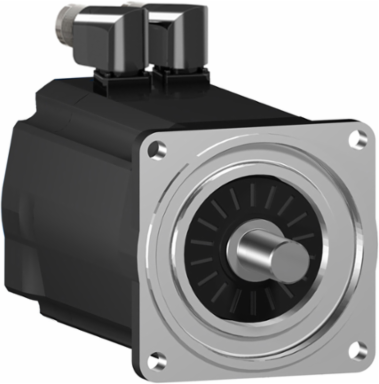

Schneider Electric SH31001P01A2200 Servo Motor 2.94 Nm, 6000 RPM, IP65/IP67, 4.3 kg
- MPN: SH31001P01A2200
- PPN: SCH-SH31001P01A2200
CAD
$3787.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This servo motor from Schneider Electric exemplifies high performance and reliability, boasting a robust torque rating of 2.94 Nm and an impressive rotational speed of 6000 RPM. It's designed to operate effectively in demanding environments, as evidenced by its IP65/IP67 rating, which provides excellent protection against dust and water ingress. Weighing in at 4.3 kg, this motor is engineered for precision in motion control applications, making it an ideal choice for various automation and control systems. By integrating cutting-edge technology and durable construction, it meets the stringent requirements of modern industrial applications.
Documentation & Downloads
Specifications
Additional
- Continuous Power
- 1190 W
- Continuous Stall Torque
- 2.94 N.m 115...480 V three phase
- Nominal Torque
- 2.91 N.m 115 V single phase || 2.64 N.m 230 V single phase || 2.27 N.m 400 V three phase || 2.27 N.m 480 V three phase
- Maximum Mechanical Speed
- 6000 rpm
- Torque Constant
- 0.84 N.m/A 120 0C
- Continuous Stall Current
- 3.5 A
- Stator Inductance
- 27.15 mH
- Maximum Axial Force Fa
- 160 N
- Length
- 168.5 mm
- Shaft Length
- 40 mm
- Centring Collar Diameter
- 95 mm
- Number Of Mounting Holes
- 4
- Circle Diameter Of The Mounting Holes
- 115 mm
- Electrical Connection
- straight connector
- Rated Voltage
- 115...480 V
- Cooling Type
- natural convection
- IP Degree Of Protection
- IP65 motor: conforming to EN/IEC 60034-5 || IP65 shaft bushing: conforming to EN/IEC 60034-5 || IP67 housing: conforming to EN/IEC 60034-5
- Speed Feedback Resolution
- 128 periods
- Rohs Exemption Information
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Contains SVHC above threshold
- Weee
- Must follow EU waste collection regulations
- Sustainable Offer Status
- Green Premium product
- Holding Brake
- without
- Range Compatibility
- PacDrive 3
Peak Stall Torque9.6 N.m 115...480 V three phase
Nominal Output Power410 W 115 V single phase || 790 W 230 V single phase || 1410 W 400 V three phase || 1630 W 480 V three phase
Nominal Speed1250 rpm 115 V single phase || 2500 rpm 230 V single phase || 5000 rpm 400 V three phase || 6000 rpm 480 V three phase
Maximum Current Irms12 A
Back Emf Constant60 V/krpm 20 0C
Stator Resistance3.8 Ohm
Maximum Radial Force Fr900 N 1000 rpm || 720 N 2000 rpm || 630 N 3000 rpm || 570 N 4000 rpm || 530 N 5000 rpm
Number Of Motor Poles4
Shaft Diameter19 mm
Motor Flange Size100 mm
Centring Collar Depth3.5 mm
Mounting Holes Diameter9.0 mm
Shaft Endsmooth shaft
Mounting Supportinternational standard flange
Phasethree phase
Net Weight4.3 kg
Encoder Typeabsolute single turn SinCos Hiperface
Rotor Inertia1.4 kg.cm8
Mercury FreeYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
China Rohs RegulationX
Environmental DisclosureENVPEP111049EN
Product Or Component Typeservo motor
Device Short NameSH3.....P
