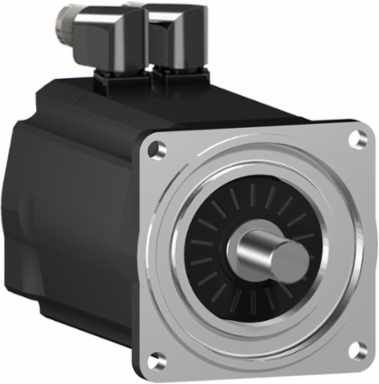

Schneider Electric SH31002P01F2100 Servo Motor 5.8 Nm, 6000 RPM, IP65, 3-Phase, 6.3 kg
- MPN: SH31002P01F2100
- PPN: SCH-SH31002P01F2100
CAD
$4527.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Engineered for precision and durability, this 5.8 Nm servo motor from Schneider Electric is an excellent choice for demanding automation and motion control applications. Operating at a remarkable speed of 6000 RPM, it ensures quick and responsive performance, making it suitable for a diverse range of systems. With an IP65 rating, this motor is protected against dust and water, providing reliability even in challenging environments. Weighing in at 6.3 kg, its robust design supports the rigorous requirements of industrial settings, elevating your automation solutions to new heights.
Documentation & Downloads
Specifications
Additional
- Continuous Power
- 1900 W
- Continuous Stall Torque
- 5.8 N.m 115...480 V three phase
- Nominal Torque
- 5.5 N.m 115 V single phase || 5.2 N.m 230 V single phase || 4.6 N.m 400 V three phase || 4.4 N.m 480 V three phase
- Maximum Mechanical Speed
- 6000 rpm
- Continuous Stall Current
- 4.8 A
- Back Emf Constant
- 77 V/krpm 20 °C
- Holding Torque
- 9 N.m
- Network Number Of Phases
- three phase
- IP Degree Of Protection
- IP65 motor: conforming to IEC 60034-5 || IP65 shaft bushing: conforming to IEC 60034-5
- Maximum Axial Force Fa
- 160 N
- Shaft Diameter
- 19 mm
- Motor Flange Size
- 100 mm
- Mounting Holes Diameter
- 9 mm
- Centring Collar Diameter
- 95 mm
- Shaft End
- smooth shaft
- Number Of Motor Poles
- 4
- Stator Resistance
- 2.4 Ohm
- Encoder Type
- absolute single turn SinCos Hiperface
- Type Of Cooling
- natural convection
- Range Compatibility
- PacDrive 3
- Environmental Disclosure
- ENVPEP111049EN
- RoHS Compliance
- Yes
- China Rohs Regulation
- X
- PVC Free
- Yes
- Warranty
- 18 months
- Country of Origin
- Germany
Nominal Output Power580 W 115 V single phase || 1090 W 230 V single phase || 1930 W 400 V three phase || 2210 W 480 V three phase
Peak Stall Torque18.3 N.m 115...480 V three phase
Nominal Speed1000 rpm 115 V single phase || 2000 rpm 230 V single phase || 4000 rpm 400 V three phase || 4800 rpm 480 V three phase
Maximum Current Irms17.1 A
Torque Constant1.21 N.m/A 120 °C
Torque5.8 N.m
Holding Brakewith
Rated Supply Voltage115...480 V
Maximum Radial Force Fr990 N 1000 rpm || 790 N 2000 rpm || 690 N 3000 rpm || 620 N 4000 rpm
Length234.5 mm
Shaft Length40 mm
Number Of Mounting Holes4
Circle Diameter Of The Mounting Holes115 mm
Centring Collar Depth3.5 mm
Electrical Connectionrotatable right angled connector
Rotor Inertia2.928 kg.cm²
Stator Inductance19.5 mH
Speed Feedback Resolution128 periods
Product Or Component Typeservo motor
Device Short NameSH3.....P
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Rohs Exemption InformationYes
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationContains Substances of Very High Concern above threshold
